Preparing For Windows 11

Windows 11 Coming Soon

The announcement of Windows 11 came quickly and was a pleasant surprise to many of us. With an expected 2021 holiday season release date, the new features, performance improvements, and security updates look promising and have many existing Windows users excited about the news. We've published a separate article that provides a glimpse of the features and interface changes to expect with the upgrade.

In addition to the promising features, we are working to stay up to date on the latest information to educate and assist our system owners to prepare for the release on their Puget workstations. We've put together a list to aid in the transition when the major Windows update comes out later this year.

Checking Hardware Compatibility

Determining whether or not your system supports Windows 11 should be one of the first considerations when preparing for the release.

Windows 11 requires modern hardware to run, but if your PC has a CPU released in the last 3-4 years, you’re probably fully compatible. Older PCs don’t seem to be so lucky. To provide enhanced security to its users, Microsoft is requiring all PCs to feature a specialized chip called a Trusted Platform Module, or TPM, of at least version 2.0. A discrete TPM isn't the only option as this technology is found in most modern CPUs and motherboards. Computers built before 2017 may not be compatible, however, so it’s important to take a close look at the minimum system requirements before opting into an upgrade.

System Requirements	4 GB RAM, 64GB storage, directx12 supported GPU
Intel CPUs	8th gen or newer Intel CPUs
AMD CPUs	Ryzen 2xxx series or newer CPUs
Qualcomm CPUs	Snapdragon 7c or newer

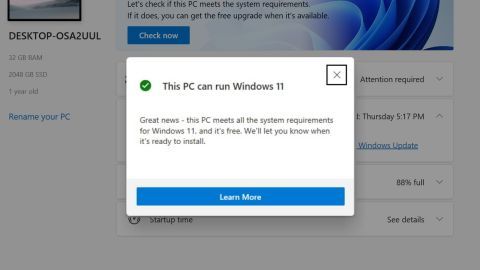

Using Microsoft’s Windows 11 System Ready Tool

A helpful application to check that the requirements of your PC match Windows 11 specifications can be found below. This tool will scan the hardware and security requirements to inform you which features you still need to enable or if your system is ready for the Windows 11 update.

[Link to the Windows 11 PC health check tool]

Backup Sensitive Data to an External Source

As with any major operating system upgrade or change, it's always important to backup any sensitive data to an external source that will not be interacted with during the upgrade process. We have a handful of articles below with suggestions to assist with keeping important files, pictures, and data redundant in a separate location.

• General backup advice
• 3rd Party backup solutions
• Backup options within Windows

Check Operating System Drive Partitioning Scheme

Part of the Windows 11 update requirements is UEFI system firmware. You can confirm the system firmware of your operating system drive within Disk Management by checking the volume properties of the drive.

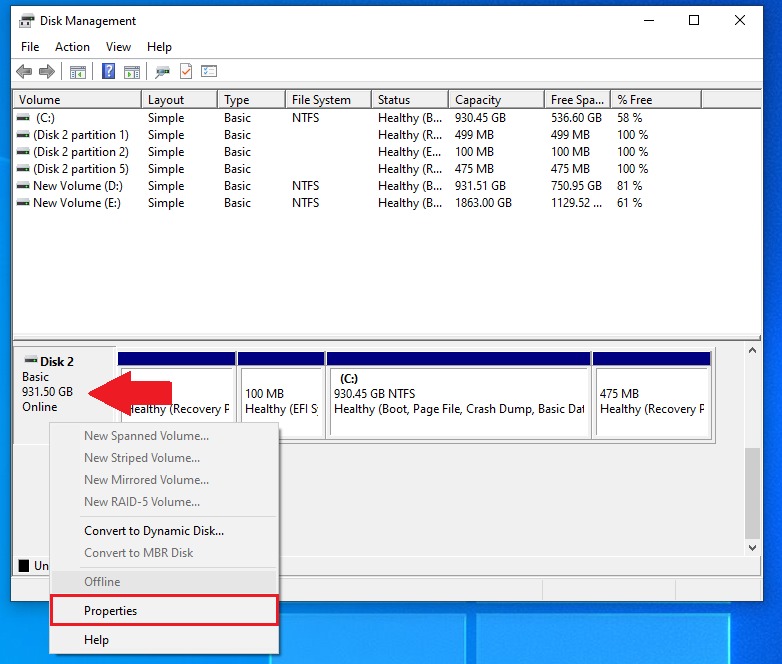

1. Right click the start menu and select 'Disk Management'
2. Right click your operating system disk and select 'properties'

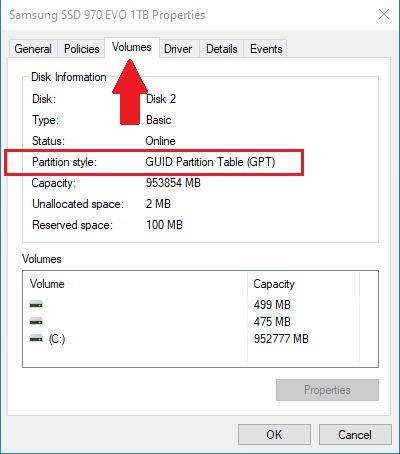

3. Click the 'volumes' tab
4. Confirm your partitioning scheme by checking the 'Partition style'

If the partition style reads as GUID Partition Table (GPT) you are good to go! If the partition style shows as Master Boot Record (MBR), you will either need to convert your operating system disk to GPT or reinstall Windows on a GPT disk.

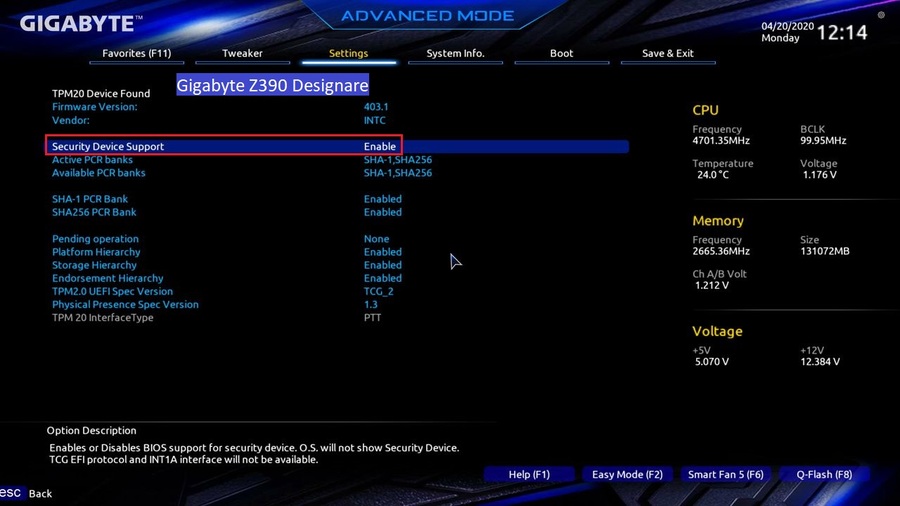

Enable TPM 2.0

After ensuring your operating system drive is using the GPT partitioning scheme and utilizing UEFI, you can enable the first major security requirement for Windows 11, TPM 2.0. There are a couple of options for configuring TPM 2.0 technology. Most notably a dedicated hardware module on your motherboard or utilizing CPU firmware technology from Intel[PTT] and AMD[fTPM].

More information on setting up TPM 2.0 can be found in our Windows 11 TPM article.

Enable Secure Boot

The second major security requirement for Windows 11 is having secure boot enabled. Secure boot is a security measure that ensures a device boots only using software that is trusted by the OEM to protect against malware. To enable and use secure boot, the BIOS must be set to detect UEFI storage devices only, sacrificing the ability to boot to legacy devices. It is not necessary to have TPM enabled to use secure boot, but they are both requirements for Windows 11.

To enable secure boot:

• Verify your bootable storage device uses GPT partitioning (See the system drive partitioning scheme section above if you are not sure how to check this)
• Disable CSM settings
• Enable Secure Boot

For further information about secure boot, check out our article here.

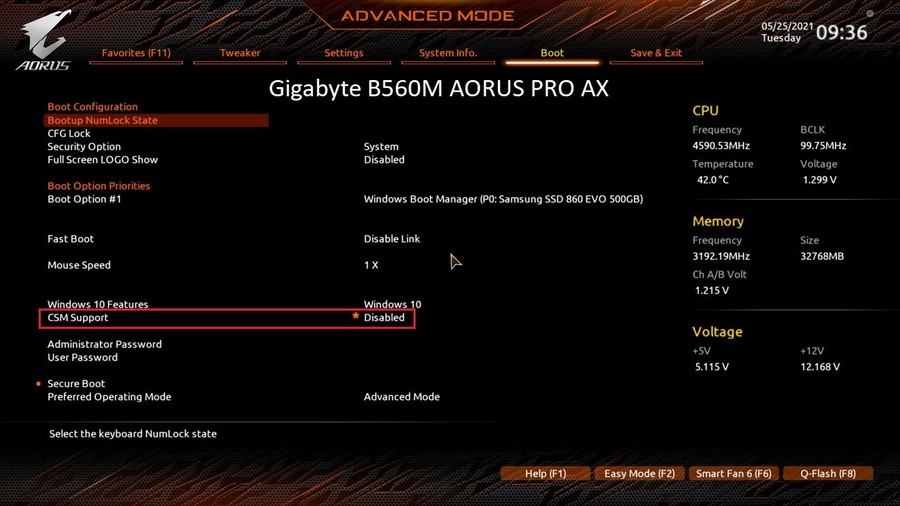

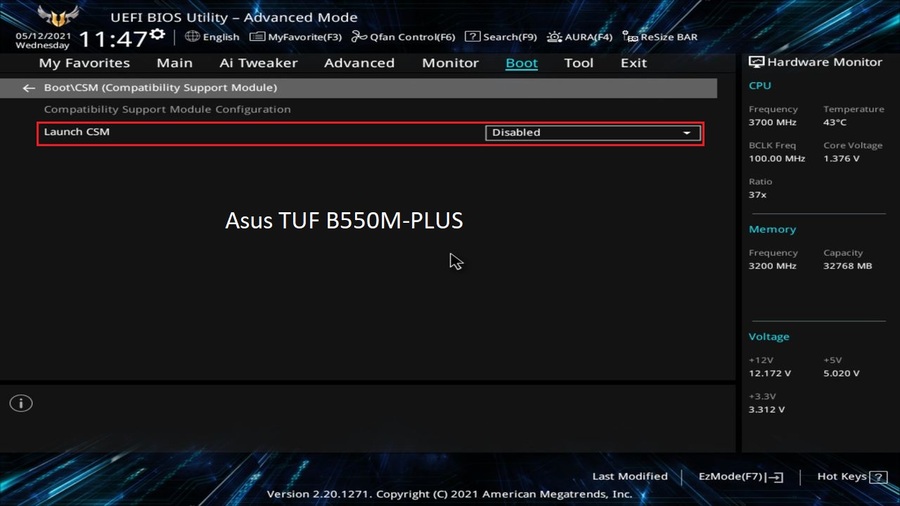

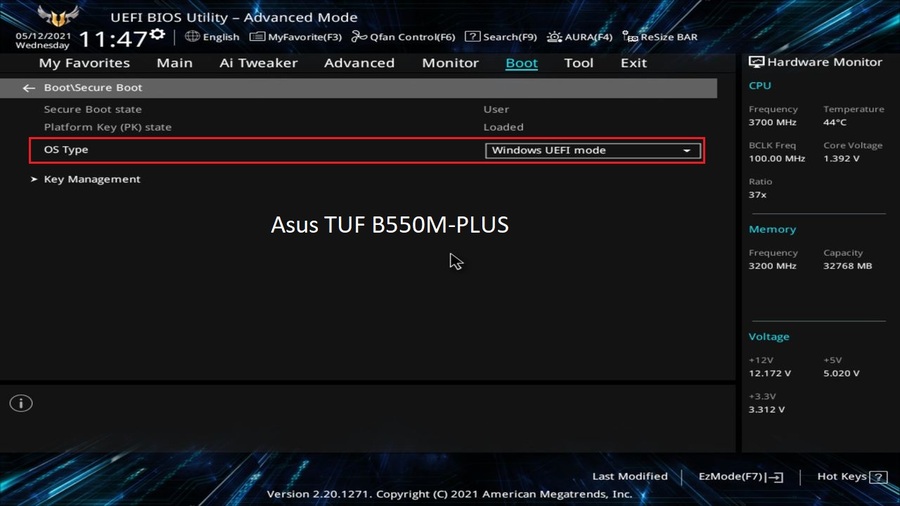

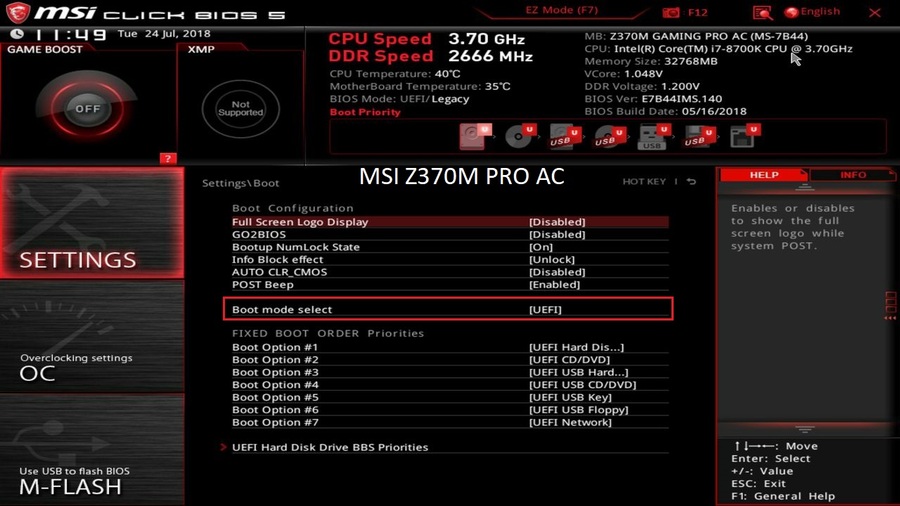

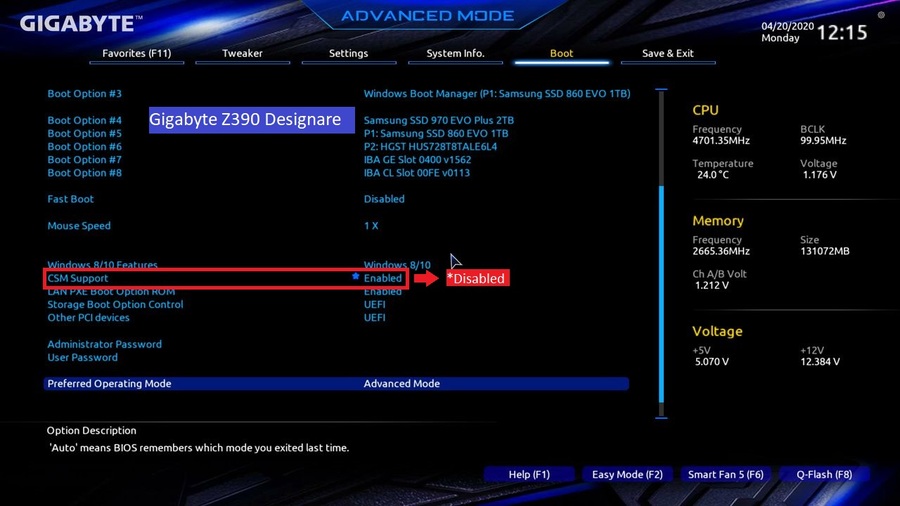

While we can't include BIOS instructions for every motherboard we carry, below are some screenshots of the CSM and secure boot settings on a handful of motherboards we've configured at Puget. If you are a Puget Systems owner and have questions about any of these settings for your system, please reach out to our support team with your order number and we can advise on your specific configuration.

What If Your Puget Workstation is Not Supported with Windows 11?

If your hardware is not supported by Windows 11 requirements, don't panic! Microsoft has stated Windows 10 will include support until October 2025. While it would be a good idea to prepare a transition to the latest Windows operating system, there is no immediate rush and you can feel comfortable taking your time with a transition.

In the Coming Months

The recent Windows 11 announcements have generated an eagerness to prepare for the update. We're hopeful this guide can educate Puget System owners on the requirements for Windows 11 and provide instructions on how to check if the hardware in your workstation is Windows 11 ready. As with most major Windows updates or releases, we recommend a late adoption strategy so the initial round of bugs are corrected and further information is uncovered about the update process. Our internal support records are logged with many issues as a result of performing direct operating system upgrades in the past. We'll be sure to share any recommendations for the upgrade process as we move closer to release in hopes to provide a stable transition for all Puget System workstation owners.
