Intel Xeon W-2400 vs W-3400

Always look at the date when you read an article. Some of the content in this article is most likely out of date, as it was written on April 7, 2023. For newer information, see our more recent articles.

Table of Contents

Introduction

On February 15th 2023, Intel announced the launch of two new families of Xeon processors: the W-2400 and W-3400 series. Both bring new and potentially exciting features to Intel’s workstation processor lineup:

Xeon W-3400 is a replacement for the previous W-3300 line, but with substantially higher core counts and improved performance. They feature eight-channel memory controllers, as previous generations had, with up to 56 cores (112 threads with Hyperthreading).
Xeon W-2400 represents Intel’s re-introduction of a high-end desktop (HEDT) processor, which has been absent since their Core X line faded from the spotlight a few years ago. These are more affordable than the W-3400 series and equipped with quad-channel memory controllers, but only go up to 24 cores / 48 threads.

One major improvement with this generation is the move from DDR4 to DDR5, while still maintaining the use of ECC Registered memory modules. This change also comes with a new socket, meaning a new chipset and motherboards too – so these are not usable as drop-in upgrades to existing workstations.

Differences Between Xeon W-2400 & W-3400

Here is a chart showing the differences between Intel’s W-2400 and W-3400 processor families described above, along with other variants between the two like PCI-Express lane count and base power usage:

Xeon W Overview	Intel Xeon W-2400 (Mainstream Workstation Processors)	Intel Xeon W-3400 (Expert Workstation 1S Processors)
Socket	LGA 4677	LGA 4677
CPU PCIe Lanes	64	112
Memory Channels	4	8
Max Cores/Threads	24/48	56/112
Base Power	110 – 225W	270 – 350W
Max Memory	2TB DDR5	4TB DDR5
Overclocking	Select Models – Denoted With “X” in Model #	Select Models – Denoted With “X” in Model #

As you can see, the W-2400 line is mostly a trimmed-down version of the W-3400 processors. Half the memory channels and maximum memory capacity, a bit less than half the maximum core count, and a bit more than half the PCIe lanes. There are also a number of similarities, though! Both lines use the LGA 4677 socket, and thus are compatible with the same CPU coolers – but the heat spreaders are physically different, so you need a different carrier to adapt each line to the base of the cooler.

Because of the shared socket and underlying design, CPUs from each line can also use the same chipset (W790) and work with the same motherboards. However, some motherboards are designed with the W-2400 series in mind – and putting a W-3400 chip in those will result in half the CPU’s memory channels and a lot of its PCI-Express lanes going unused. The halved memory bandwidth in particular can impact the performance of some real-world applications, so it is important to note.

On the other hand, putting a Xeon W-2400 series processor into a board built for the W-3400 will result in some of the slots on the board not working. Since the W-2400s have half as many memory channels, half of the RAM slots will not function – limiting the amount of memory that can be installed. Likewise, some of the PCI-Express slots and possibly M.2 sockets will be non-functional which in turn limits expansion capability.

Overclocking

The last thing we want to make sure to point out is that overclocking is now a supported feature for some Xeon W models. Across both the W-2400 and W-3400 families, any model number ending in “X” has an unlocked clock multiplier. This naming hearkens back to the Core X lineup from a few years ago, which sported designations like “Core i9 10900X” and were likewise overclockable.

In our opinion, however, overclocking is contrary to one of the main goals of a workstation-class product (stability and reliability). If you are willing to assume the risks, it can be a viable way to get some “free” performance. Unfortunately – again, in our opinion – many motherboards ship with features like Multi-Core Enhancement (MCE) enabled. This particular setting allows the system to run all the cores at the maximum rated Turbo Boost frequency, rather than lowering the frequency based on how many cores are being used. Intel considers this a form of overclocking, and it definitely causes CPUs to run hotter than would otherwise be expected when many of the cores are under heavy load at the same time.

Xeon W-2400 vs W-3400 Infographics

Here is a gallery of charts provided by Intel, which demonstrate the functional differences that these two processor families have:

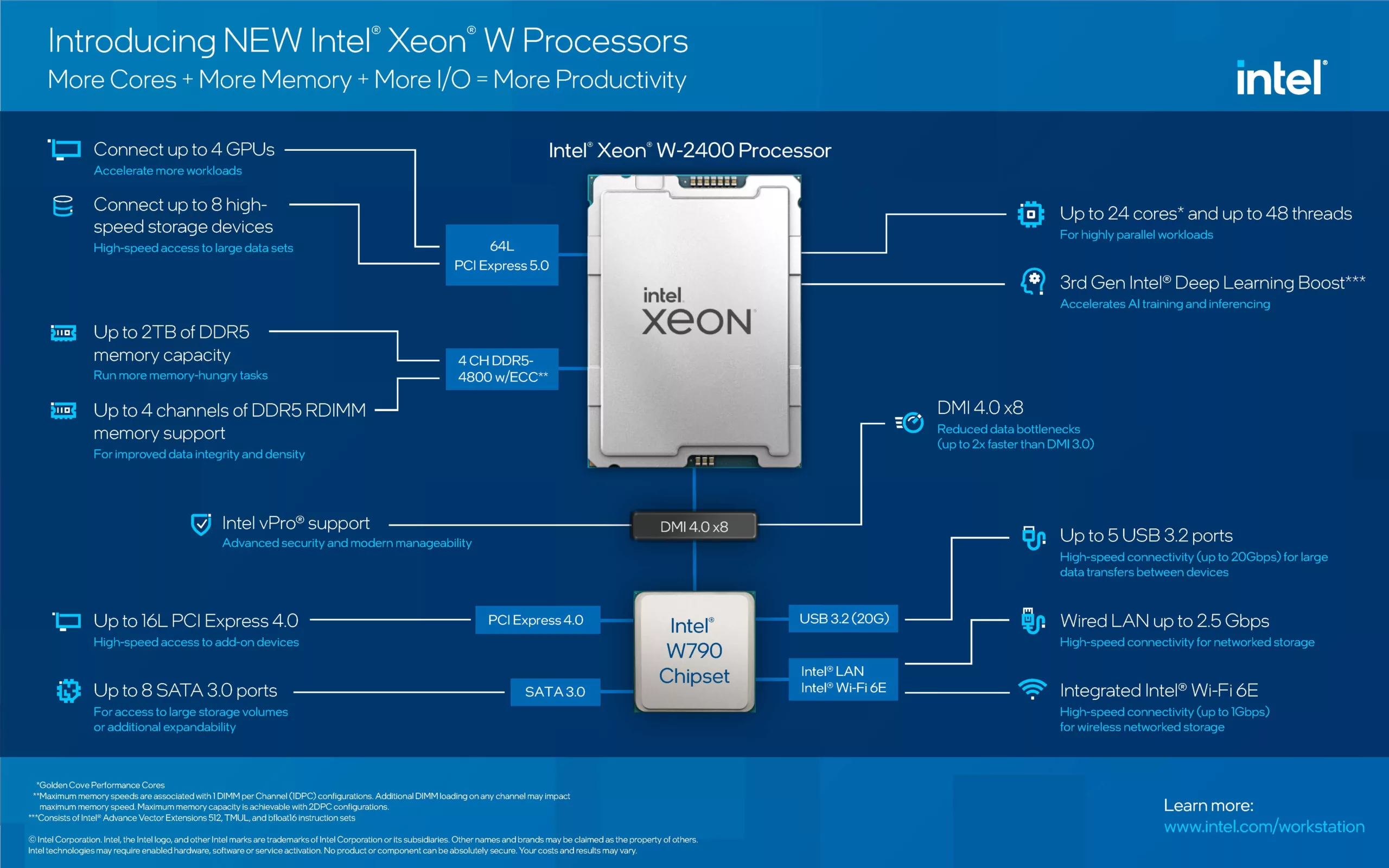

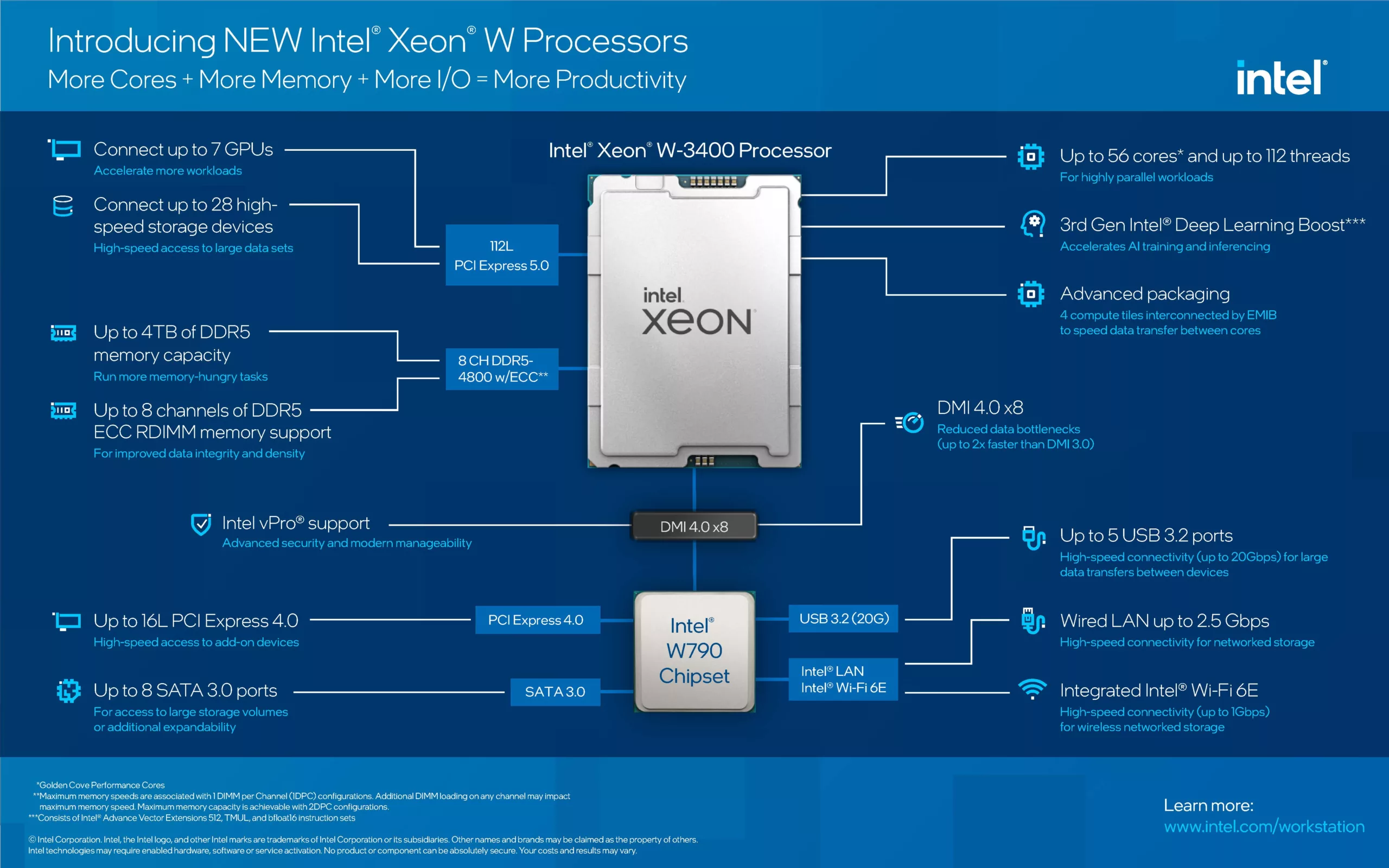

Infographics from Intel about the new Xeon W-2400 and W-3400 Processors

Full Xeon W-2400 and W-3400 CPU Lineup

Intel tends to provide a very broad product portfolio for Xeons, and these new lines are no different with eight models in the W-2400 line and seven in the W-3400 line. This results in a long list of CPUs, which we have shown along with basic specifications in the table below. If you want to see the full specs of these new Intel Xeon CPUs, we recommend checking out the Intel Ark page for Xeon W Processors.

Intel Xeon	Cores/ Threads	Cache (L3)	Max Clock	Base Clock	Max Memory Speed	Unlocked	Power (Base/Max)	MSRP
w9-3495X	56/112	105MB	4.8GHz	1.9GHz	DDR5 4800	Yes	350/420W	$5,889
w9-3475X	36/72	82.5MB	4.8GHz	2.2GHz	DDR5 4800	Yes	300/360W	$3,739
w7-3465X	28/56	75MB	4.8GHz	2.5GHz	DDR5 4800	Yes	300/360W	$2,889
w7-3455	24/48	67.5MB	4.8GHz	2.5GHz	DDR5 4800	No	270/324W	$2,489
w7-2495X	24/48	45MB	4.8GHz	2.5GHz	DDR5 4800	Yes	225/270W	$2,189
w7-3445	20/40	52.5MB	4.8GHz	2.6GHz	DDR5 4800	No	270/324W	$1,989
w7-2475X	20/40	37.5MB	4.8GHz	2.6GHz	DDR5 4800	Yes	225/270W	$1,799
w5-3435X	16/32	45MB	4.7GHz	3.1GHz	DDR5 4800	Yes	270/324W	$1,589
w5-2465X	16/32	33.75MB	4.6GHz	3.1GHz	DDR5 4800	Yes	200/240W	$1,399
w5-3425	12/24	30MB	4.6GHz	3.2GHz	DDR5 4800	No	270/324W	$1,189
w5-2455X	12/24	30MB	4.6GHz	3.2GHz	DDR5 4800	Yes	200/240W	$1,049
w5-2445	10/20	26.25MB	4.6GHz	3.1GHz	DDR5 4800	No	175/210W	$839
w3-2435	8/16	22.5MB	4.5GHz	3.1GHz	DDR5 4400	No	165/198W	$669
w3-2425	6/12	15MB	4.4GHz	3.0GHz	DDR5 4400	No	130/156W	$529
w3-2423	6/12	15MB	4.2GHz	2.1GHz	DDR5 4400	No	120/144W	$359

Closing Thoughts

Compared to the previous W-3300 line, the new W-2400 processors are a bit less expensive per core at the top end, and pretty on par around the 12-core mark. Interestingly, Intel is providing a number of lower-end models this time around – all the way down to a 6-core model for just $359. Although we are not planning on carrying models that low, they could be a viable option for workloads where the CPU primarily functions as a traffic controller. Being able to get support for 64 PCIe lanes or terabytes of RAM on a $359 processor is unheard of.

We will note, however, that MSRP can be misleading for this type of product, as these CPUs are intended to primarily be sold as a part of an entire workstation and not as individual parts. Because of that, pricing can change based on numerous deals system integrators may have access to, but are also impacted by the markup applied by those same integrators.

In terms of specs, the W-2400 CPUs are very similar to their W-3400 counterparts at the same core count, although it is interesting how much lower the wattage is. The w5-2455X, for example, is almost identical to the w7-3425 in terms of base specs, only with a dramatically lower power draw. True, it has fewer PCIe lanes and memory channels, but a 70-84W difference is pretty significant if you don’t need those additional features.

All in all, the new Xeon W-2400 and W-3400 processors are a welcome addition to Intel’s workstation lineup and worthy replacements for both the Xeon W-3300 and the long-lost Core X-Series.
