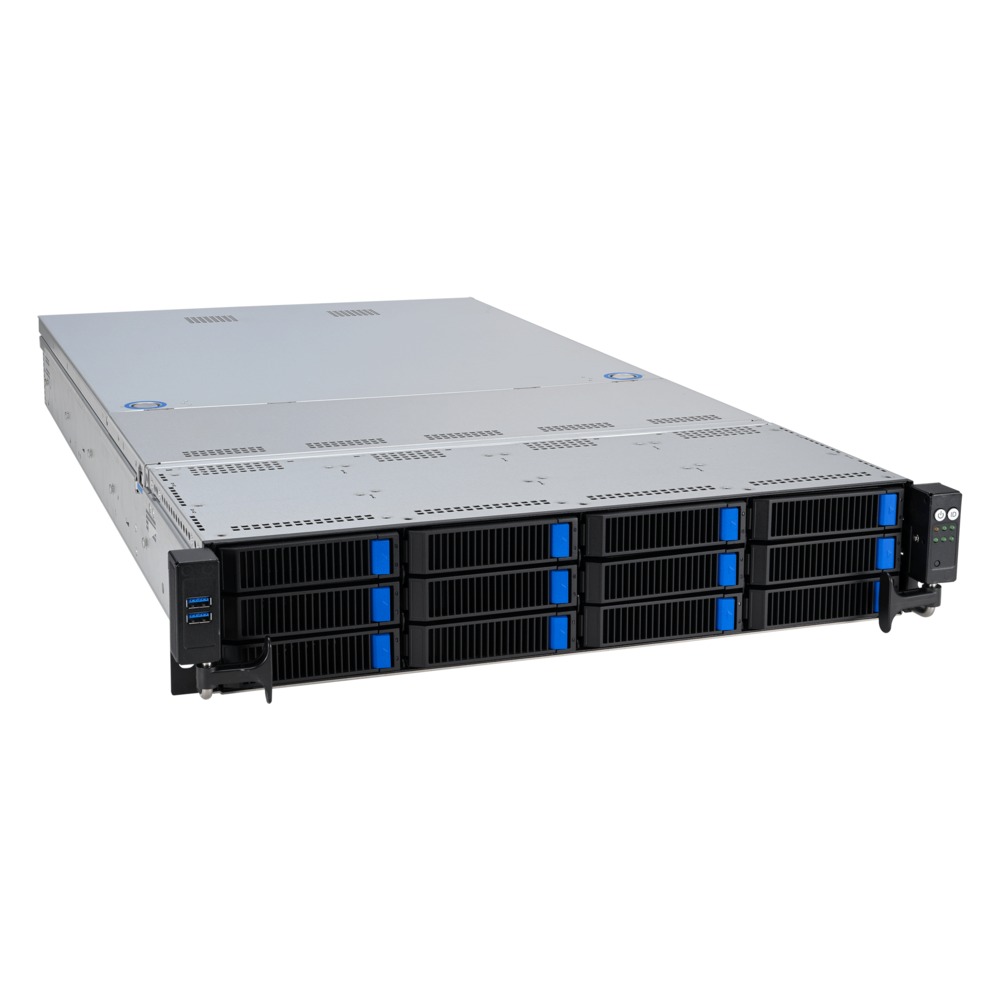

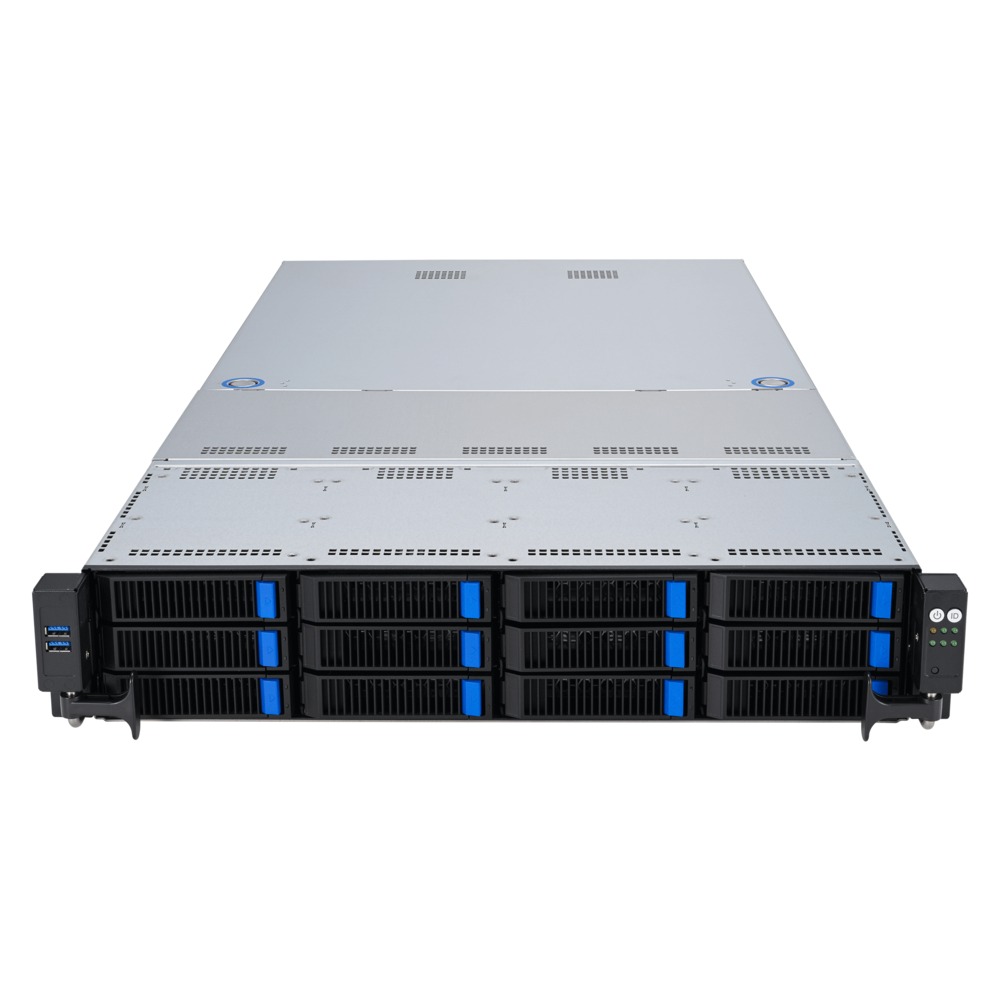

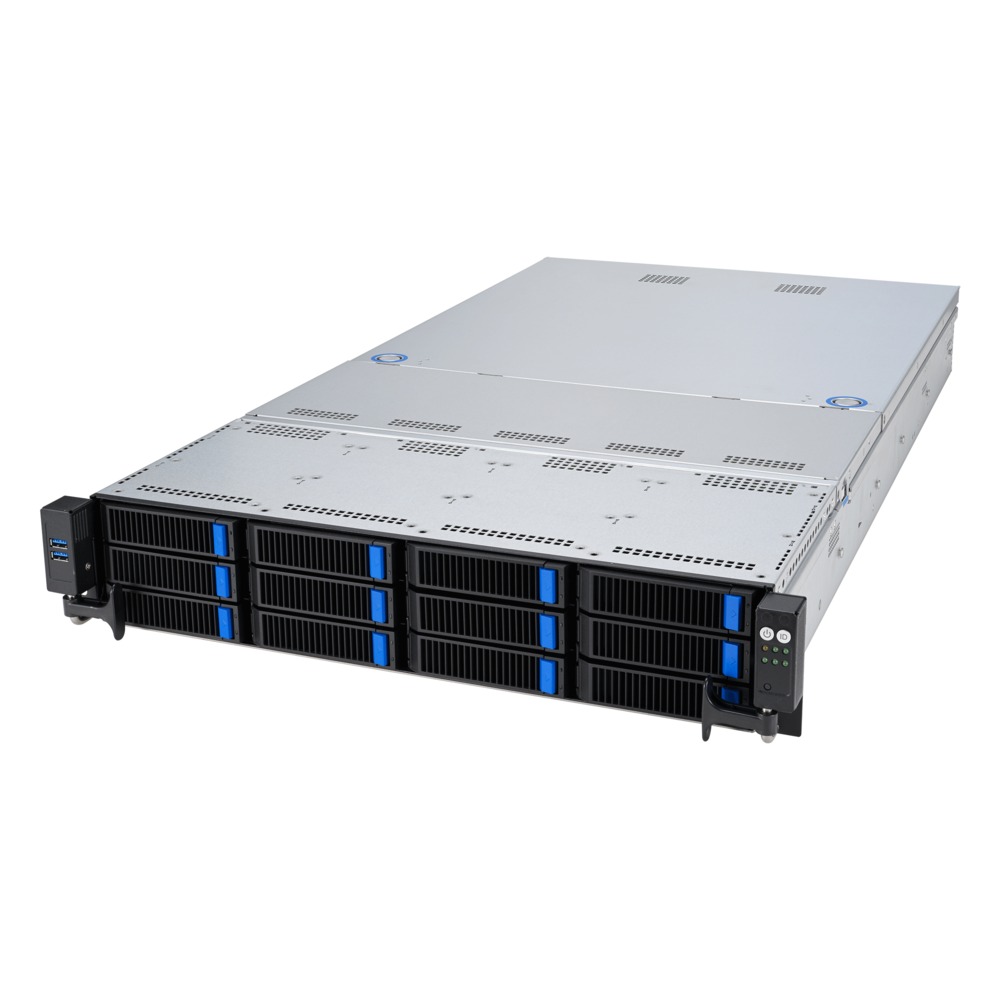

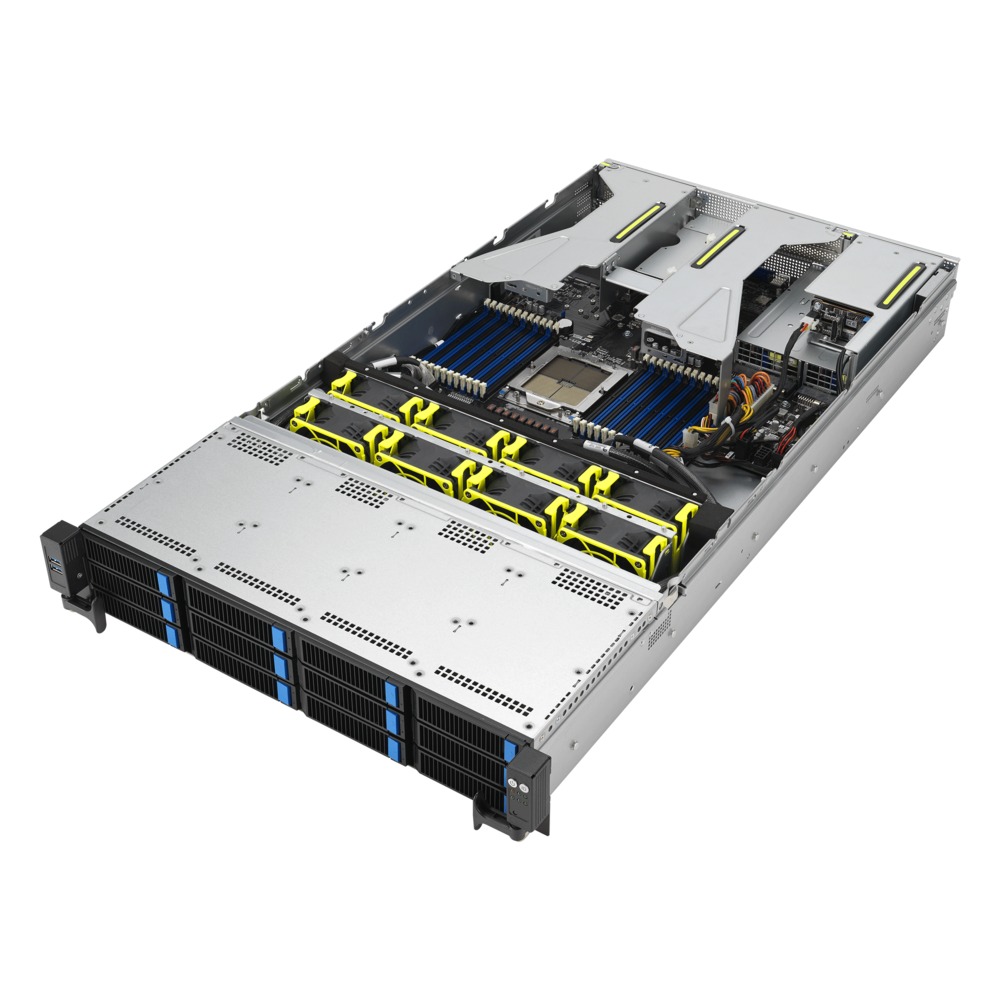

The ASUS RS520A-E12-RS12U is a 2U rackmount storage server built to accommodate up to twelve 3.5-inch drives. It utilizes an AMD EPYC 9004 Series processor, which supports a massive number of PCI-Express Gen 5 lanes as well as 12 DDR5 channels - ensuring plenty of memory and I/O bandwidth for managing software-defined storage arrays.

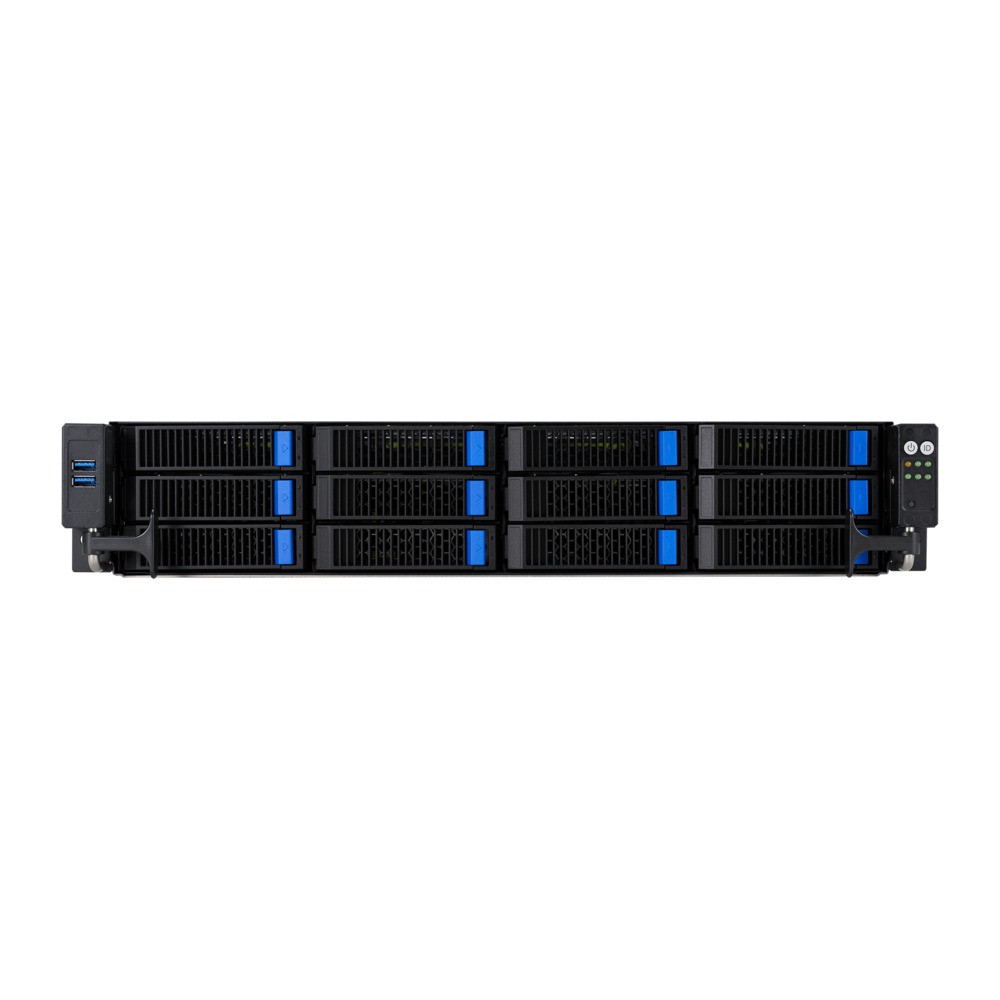

In addition to the 12 front-accessible hot-swap bays, there are two M.2 slots for hosting the operating system and software as well as a pair of SATA connections for cache drives.

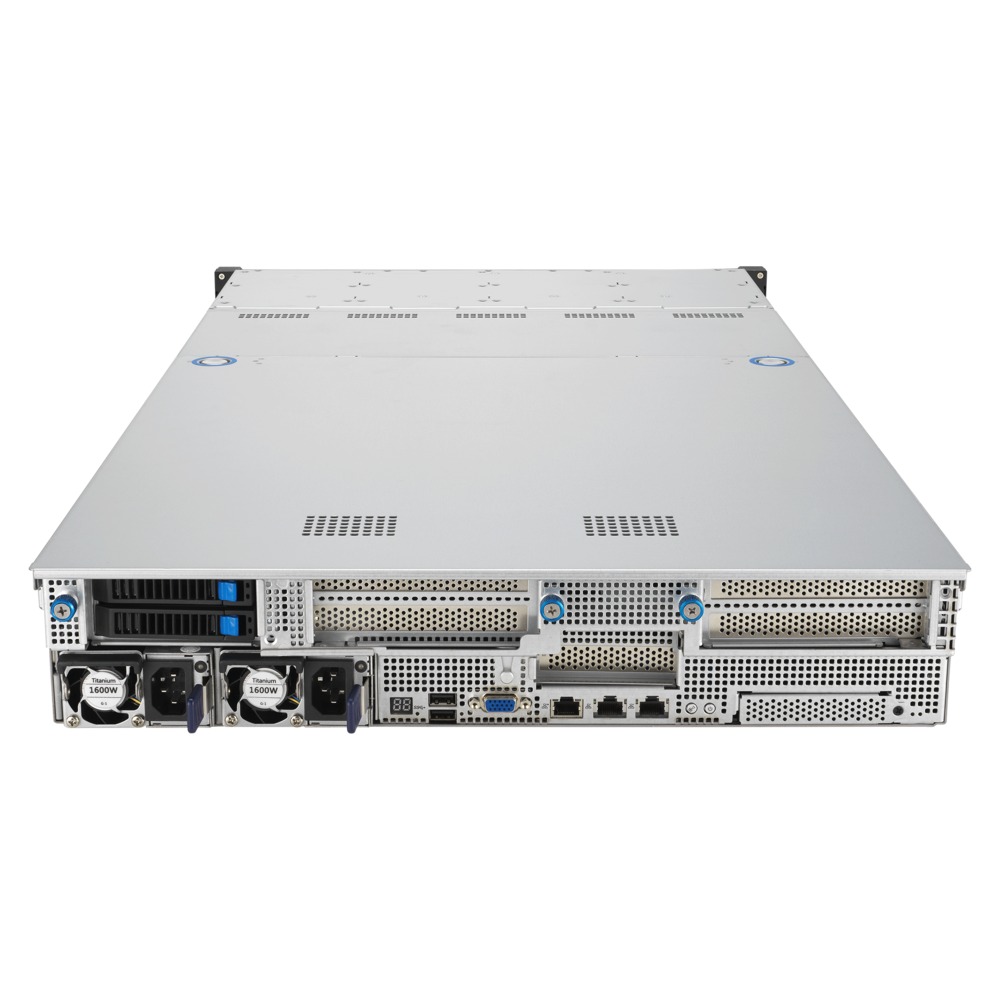

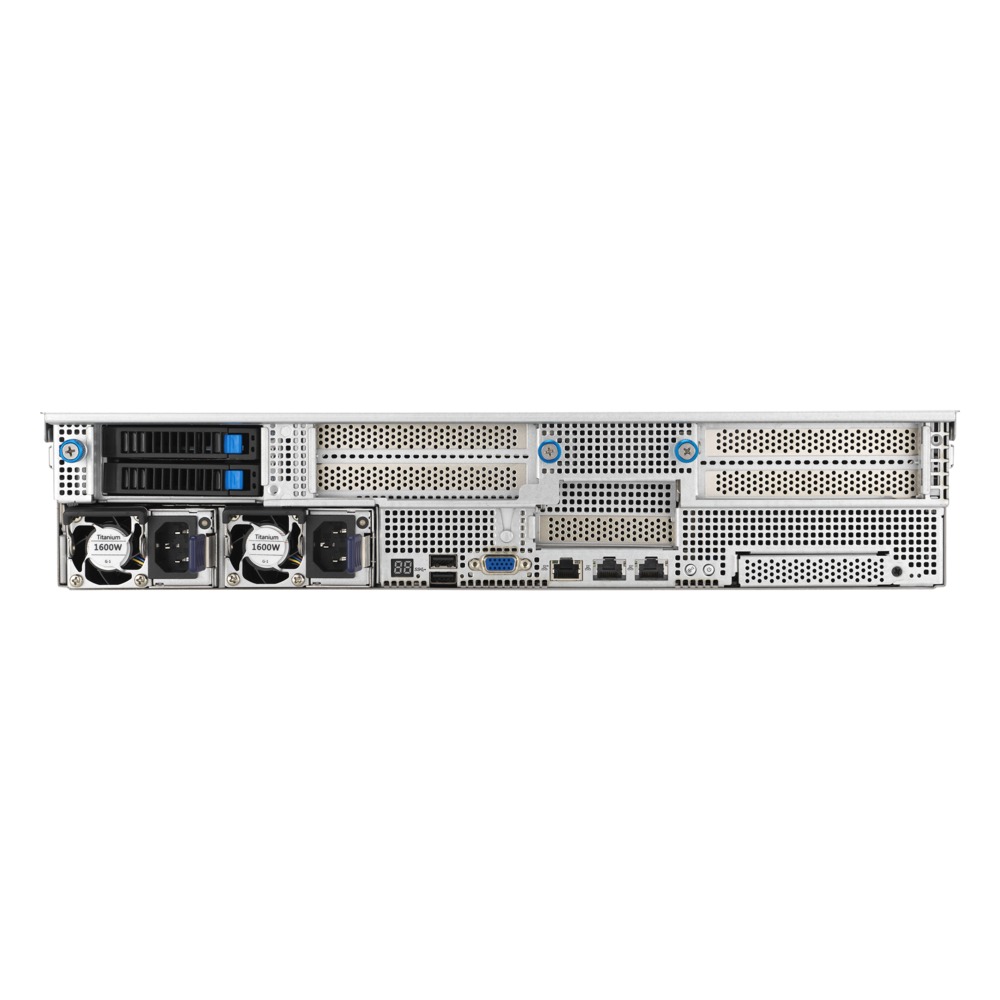

External connectivity consists of VGA output, four USB ports (2 each in front and back), two Gb LAN ports, and another LAN for remote management. There is an OCP 3.0 slot for installing a faster network adapter, though, as well as a few PCI-Express slots of varying sizes for graphics cards or other expansion needs.
In addition to the 12 front-accessible hot-swap bays, there are two M.2 slots for hosting the operating system and software as well as a pair of SATA connections for cache drives.
External connectivity consists of VGA output, four USB ports (2 each in front and back), two Gb LAN ports, and another LAN for remote management. There is an OCP 3.0 slot for installing a faster network adapter, though, as well as a few PCI-Express slots of varying sizes for graphics cards or other expansion needs.
Note: Includes a sliding rail kit for mounting.
Model: Asus RS520A-E12-RS12U
Specifications
| Socket | SP5 |
| CPU Compatibility | AMD EPYC 9004 series (up to 400W) |
| Form Factor | 2U |
| Chipset Manufacturer | AMD |
| Network Connectivity | Onboard Dual Gigabit Ethernet (RJ45) |
| Network Controller | Intel I350-AM2 |
| Cooling System | Heatsink and Fan |
| Number of Fans | 8 |
| Color | Black |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 4800 MHz |
| Number of Slots | 24 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 3072 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| VGA | 1 |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
Internal Connections | |
| SATA III 6.0Gbps | 14 |
| M.2 Connector | 2 |
| M.2 Support | 2x 80-110mm PCIe 5.0 |
| U.2 Connector | 12 |
| Compatible TPM | Asus TPM-SPI |
| Notes: | Support up to 12 NVMe/SAS/SATA |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x8 in a x16 size |
| Slot 3 | PCI Express 5.0 x16 |
| Slot 4 | PCI Express 5.0 x8 in a x16 size |
| Slot 5 | PCI Express 5.0 x8 |
| Slot 6 | OCP 3.0 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| Built-in Webcam | No |
| Built-in Microphone | No |
| Bluetooth | No |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
| Includes Rail Kit | No |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 88.1 mm (3.5 in) |
| Width | 449 mm (17.7 in) |
| Depth | 840 mm (33.1 in) |
| Net Weight | 18.8 kg (41.4 lbs) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1600 W |
| Redundancy | 1+1 |
