NVIDIA L40S 48GB Ports
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.

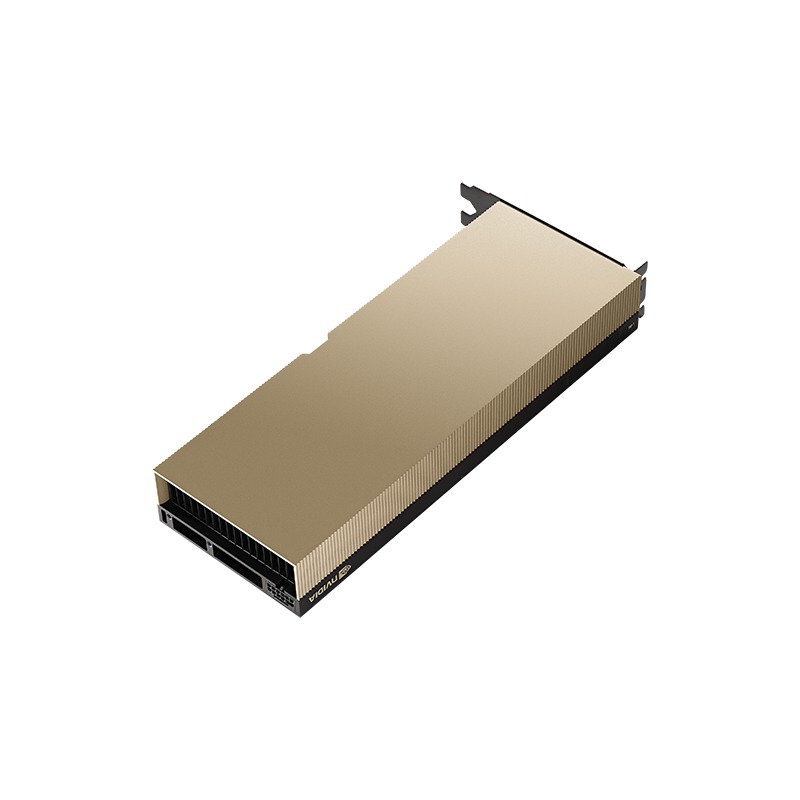

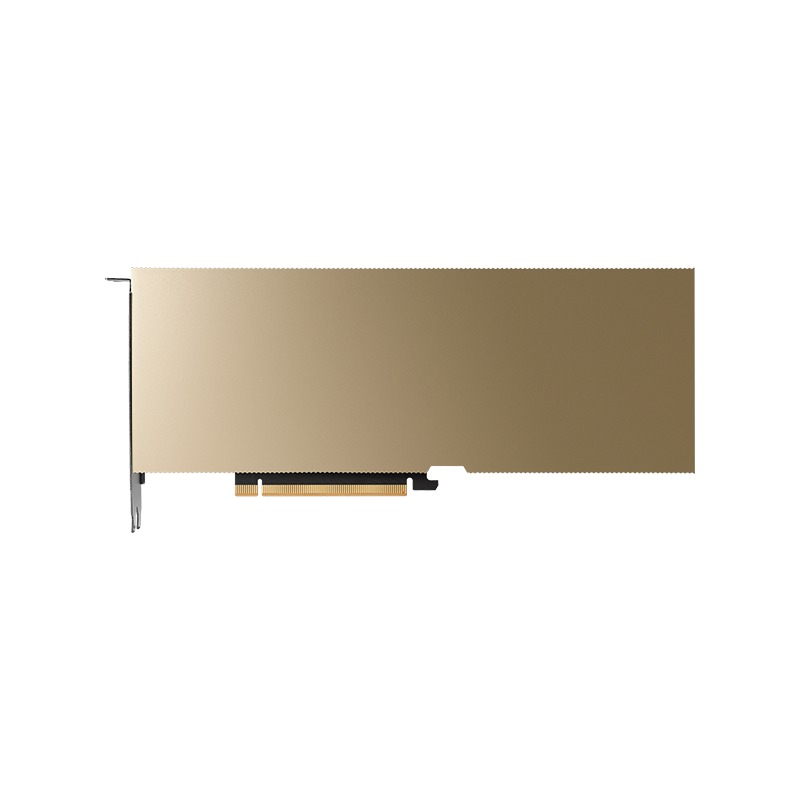

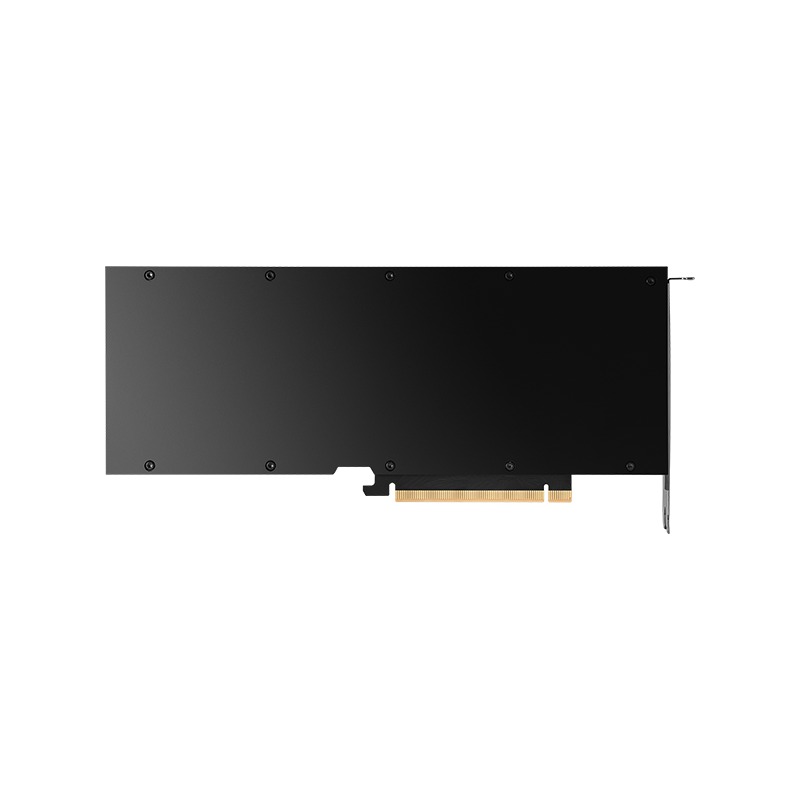

The NVIDIA L40S is an enterprise-class compute GPU designed for use in server configurations. It uses the new Ada Lovelace architecture and offers similar specifications to the RTX 6000 Ada - but with less aggressive clock speeds in order to ensure stability under constant load and long-term reliability.

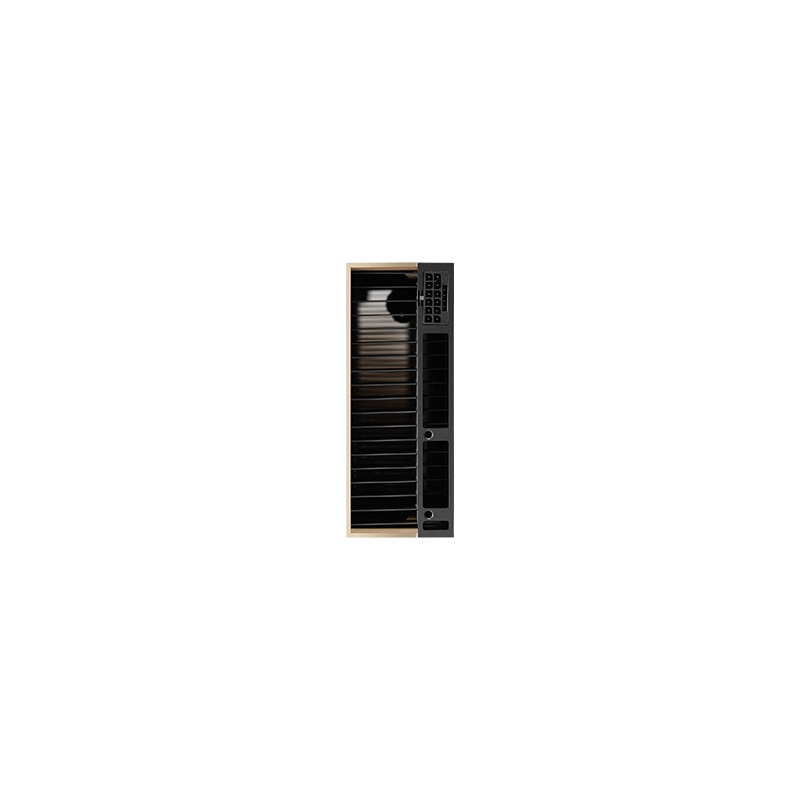

These GPUs are passively cooled, so they can only be used in systems that are specifically designed to provide plenty of airflow through the heatsinks on these cards. While video output may not be common from servers, these cards do support four DisplayPort 1.4a connections.
These GPUs are passively cooled, so they can only be used in systems that are specifically designed to provide plenty of airflow through the heatsinks on these cards. While video output may not be common from servers, these cards do support four DisplayPort 1.4a connections.
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Compute |
| Series | Ada Lovelace |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 4.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| TGP | 350 W |
GPU Specifications | |
| Stream Processors | 18,176 |
| Tensor Cores | 568 |
Memory Specifications | |
| Video Memory | 48GB |
| Memory Type | GDDR6 ECC |
| Memory Bus Width | 384-bit |
| Bandwidth | 864 GB/s |
Performance | |
| Single Precision Floating Point (Peak) | 91.6 Tflops |
Additional Information | |
| Cooling System | Passive Rackmount |
| Removable Backplate | No |
| Slot Width | 2 |
| Quadro Sync Support | Quadro Sync II |
Outputs | |
| Port 1 | DisplayPort 1.4a |
| Port 2 | DisplayPort 1.4a |
| Port 3 | DisplayPort 1.4a |
| Port 4 | DisplayPort 1.4a |
Power Connectors | |
| Plug 1 | 16-Pin PCIe 5.0 |
Dimensions | |
| Length | 267 mm (10.5 in) |
| Height | 112 mm (4.4 in) |
| Width | 42 mm (1.7 in) |
| Net Weight | 1.180 kg (2.6 lbs) |
