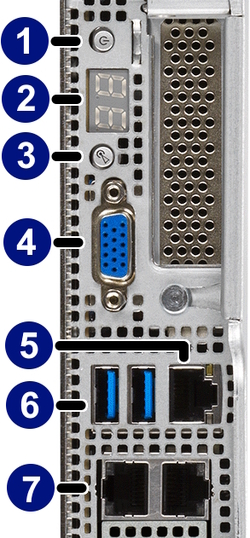

ASUS RS700-E11-RS12U-16W10G 1U Server Ports
Power Switch: On/off button for the device.
Q-Code Display: Displays status codes for system components. Codes are found in the motherboard manual.
UID Button: Press to turn both front and rear Unit Identification (UID) Lights on / off.
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
10G LAN Ports (RJ-45): RJ-45 plugs for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
The ASUS RS700-E12-RS12U is a 1U rackmount server built to utilize a pair of 5th Gen Intel Xeon Scalable processors. Each of those offers up to 64 cores and supports 12 DDR5 channels - ensuring plenty of processing power and memory bandwidth for running extremely CPU-intensive workloads.

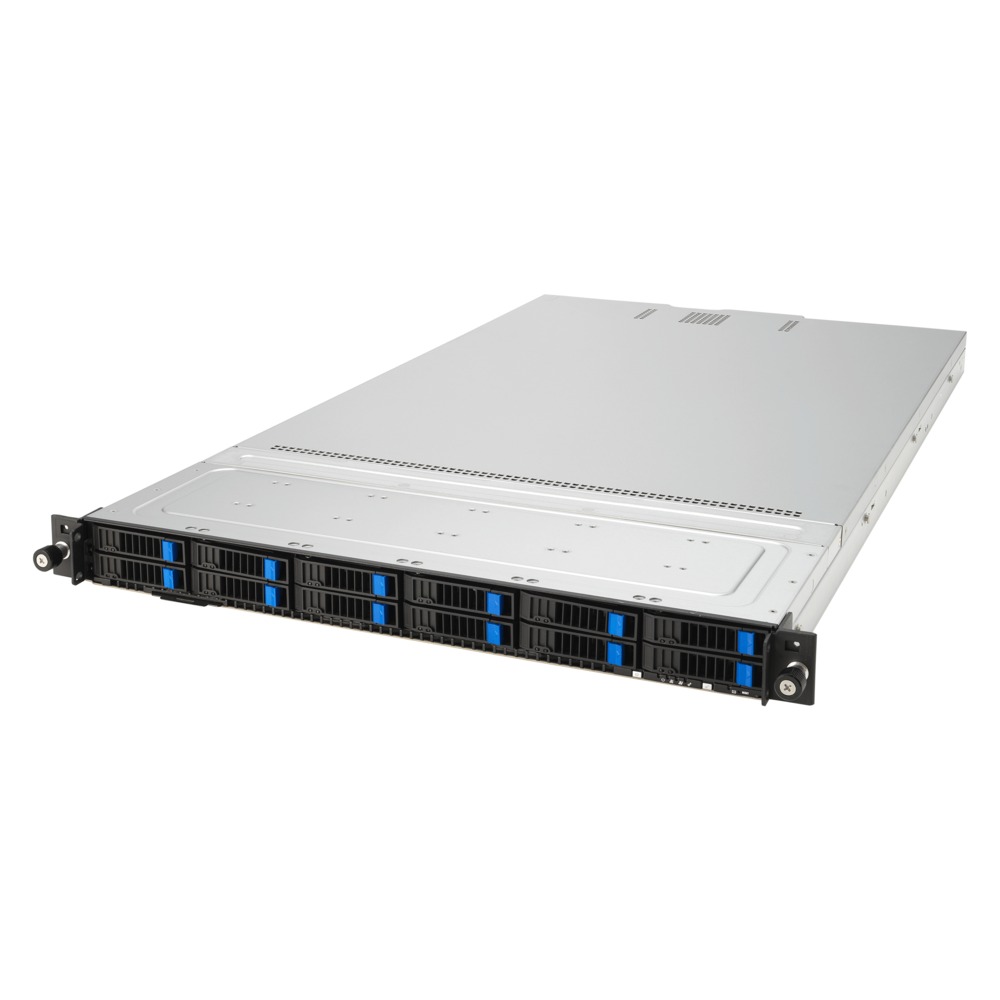

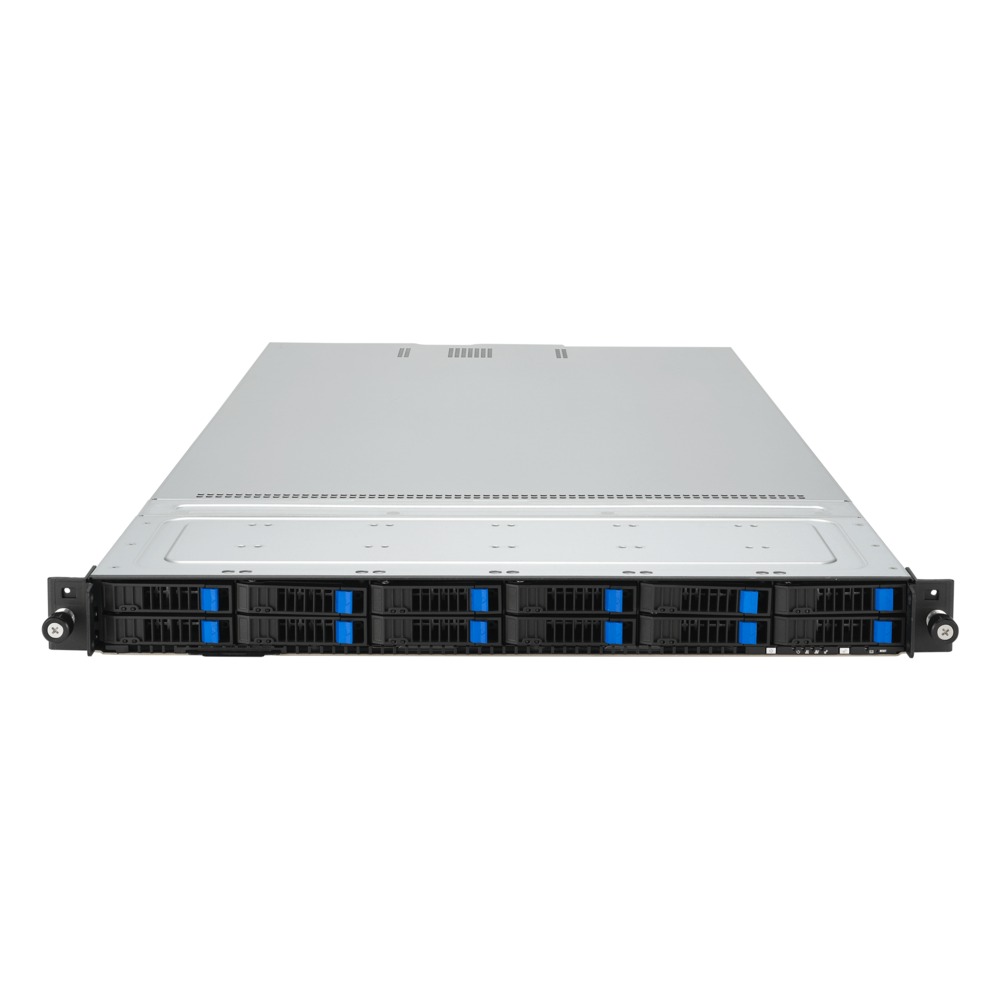

For storage, this system has two M.2 slots internally and twelve 2.5-inch hot-swap bays along the front - each of which can support SATA or NVMe drives.
External connectivity consists of two USB ports, two 10 Gb Ethernet ports, and another RJ45 for remote management. There is also a VGA port for the onboard graphics, but that is mostly present to facilitate the IPMI (remote management). For expansion, there are one OCP 3.0 and a few PCI-Express 5.0 slots
For storage, this system has two M.2 slots internally and twelve 2.5-inch hot-swap bays along the front - each of which can support SATA or NVMe drives.
External connectivity consists of two USB ports, two 10 Gb Ethernet ports, and another RJ45 for remote management. There is also a VGA port for the onboard graphics, but that is mostly present to facilitate the IPMI (remote management). For expansion, there are one OCP 3.0 and a few PCI-Express 5.0 slots
Model: Asus RS700-E11-RS12U-16W10G
Specifications
| Socket | 4677 |
| CPU Compatibility | Xeon Scalable 4th/5th Gen |
| Form Factor | 1U |
| Chipset Manufacturer | Intel |
| Chipset | C741 |
| Network Connectivity | Dual 10G Networking |
| Network Controller | Intel X710-AT2 |
| Audio Controller | N/A |
| Cooling System | Heatsink and Fan |
| Number of Fans | 9 |
| Color | Black |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 5600 MHz |
| Number of Slots | 32 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 4096 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600 |
| Maximum Resolution | 1920x1200 |
| VGA | 1 |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| BIOS Flashback | No |
Internal Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| M.2 Connector | 2 |
| M.2 Support | 2x 80mm PCIe 4.0 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
Expansion Slots | |
| Slot 1 | PCI Express 5.0 x16 |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | PCI Express 5.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
| Includes Rail Kit | Yes |
BIOS Features | |
| UEFI BIOS | No |
| EZ Flash | No |
| OC Profiles | No |
Dimensions | |
| Height | 44 mm (1.7 in) |
| Width | 440 mm (17.3 in) |
| Depth | 842.5 mm (33.2 in) |
| Net Weight | 13.7 kg (30.2 lbs) |
Power Supply | |
| Input Voltage | 100-240 Vac |
| Wattage at 120V | 1600 W |
| Redundancy | 1+1 |
