Blackmagic Design DeckLink Mini Monitor 4K

Controllers

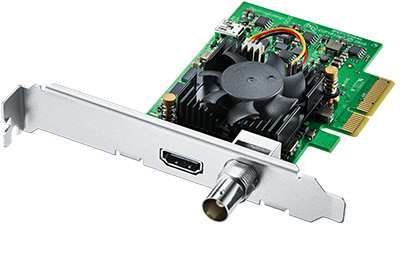

Blackmagic Design DeckLink Mini Monitor 4K Main Picture


The Blackmagic Design DeckLink Mini Monitor 4K upgrades a workstation with HDMI and SDI outputs for connecting a reference monitor. This is ideal for displaying your video editing and color correction results full-screen with 10-bit color support, while keeping your main monitor(s) for handling the rest of your workflow.

Note that this is not a standard video output card. It outputs video ONLY from supported software packages and requires a monitor that can run at your project resolution/FPS.
William George (Marketing Project Manager)
William George (Marketing Project Manager) Says:
This card has a somewhat noisy fan for cooling, so keep that in mind - and consider alternatives if you want to have a super-quiet computer.

Note: Note that this is not a standard video output card. It outputs video ONLY from supported software packages (Premiere Pro, After Effects, DaVinci Resolve, etc.) and requires a monitor that can run at your project resolution/FPS.

Model: Blackmagic BDLKMINIMON4K

Specifications

Card Specifications
Manufacturer Blackmagic
Number of Ports 2
Motherboard Connection PCI Express x4
Interface PCI Express 2.0 x4
Form Factor Low/Full Height
Dimensions
Net Weight 0.291 kg (0.6 lbs)

Features

  • SDI Video Output
    1 x 10 bit SD/HD switchable.
    HDMI Video Output
    1 x HDMI type A connector.
    SDI Audio Output
    8 channels embedded in SD and HD.
    HDMI Audio Output
    8 Channels embedded in SD and HD.

  • Codecs
    Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

  • SD Format Support
    525i29.97 NTSC, 625i25 PAL
    HD Format Support
    720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
    SDI Compliance
    SMPTE 259M and 292M.
    Audio Sampling
    Television standard sample rate of 48 kHz and 24 bit.
    Video Sampling
    4:2:2
    Color Precision
    10-bit
    Color Space
    REC 601, REC 709
    HDMI Configuration
    HDMI automatically configures to connected display.
    HDMI Resolution
    Pixel for pixel HD resolution input to connected device.
    HDMI Color Precision
    10-bit
    Multiple Rate support
    SDI and HDMI are switchable between standard definitlon and high definition.


DeckLink Mini Monitor 4K is a low profile PCIe playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS X, Windows and Linux! Includes two PCIe shields for both full height and low profile slots.
