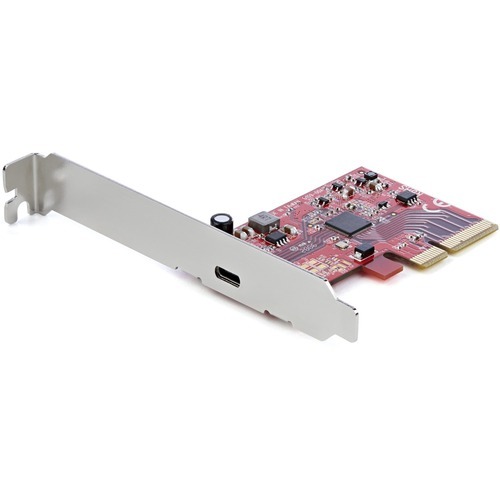

This StarTech brand card provides a single USB 3.2 Gen 2x2 Type C port, providing up to 20Gbps to a connected peripheral. This Type C port is the newer, smaller USB size standard - but can be adapted to older devices through cables with Type C on one end and the desired connection on the other. Such cables are not included, but are widely available at Amazon and many large electronics retailers.
Internally, this card requires a PCI-Express x4 (or larger) slot on the motherboard. Most boards already have a mix of various USB ports, often including Type C. If additional USB ports are needed, though, this card is one way to add more. Check the specifications of the motherboard you are considering, or ask our consulting staff, if you are unsure how many USB ports you will already have access to.
Internally, this card requires a PCI-Express x4 (or larger) slot on the motherboard. Most boards already have a mix of various USB ports, often including Type C. If additional USB ports are needed, though, this card is one way to add more. Check the specifications of the motherboard you are considering, or ask our consulting staff, if you are unsure how many USB ports you will already have access to.
Model: StarTech PEXUSB321C
Specifications
Card Specifications | |
| Manufacturer | Startech |
| Type of Ports | USB 3.2 Gen 2x2 (20Gbit/s) |
| Number of Ports | 1 |
| Port Location(s) | External |
| Motherboard Connection | PCI Express x4 |
| Interface | PCI Express 3.0 x4 |
| Form Factor | Low/Full Height |
Controller Chip | |
| Brand | Asmedia |
| Model | ASM3242 |
Dimensions | |
| Net Weight | 0.175 kg (0.4 lbs) |
