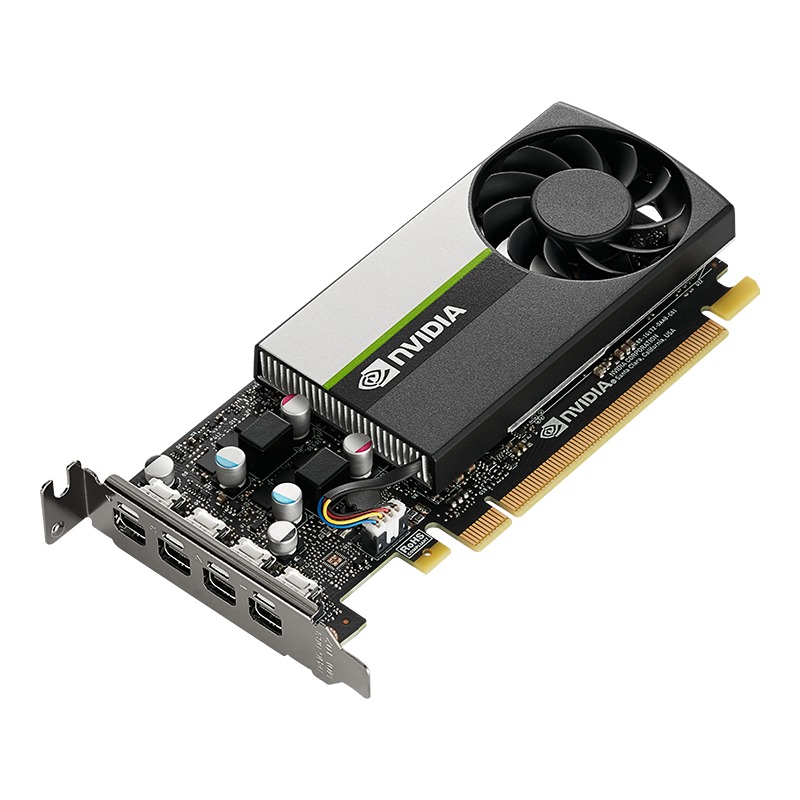

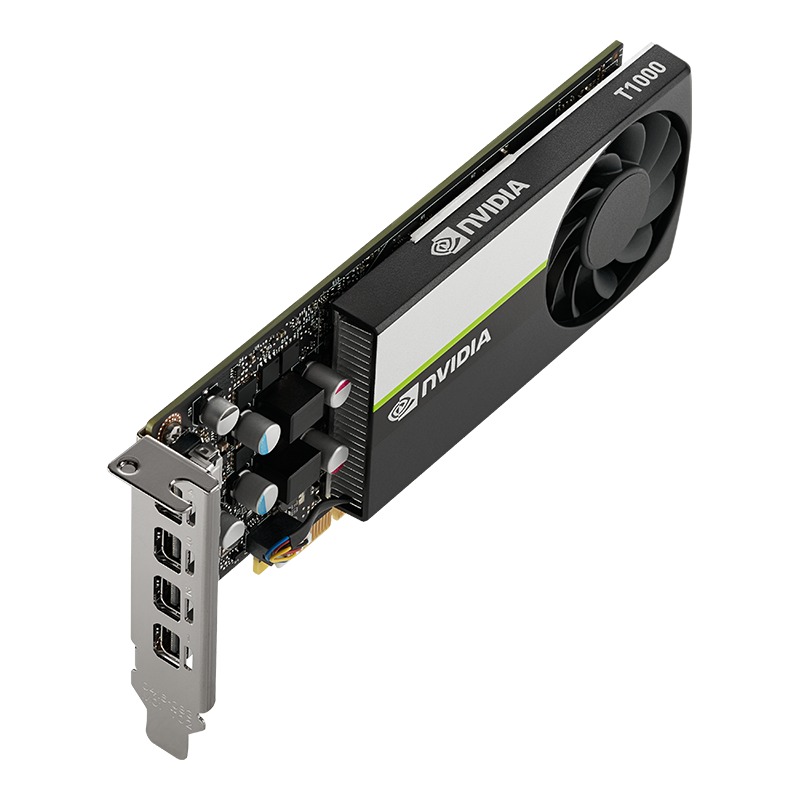

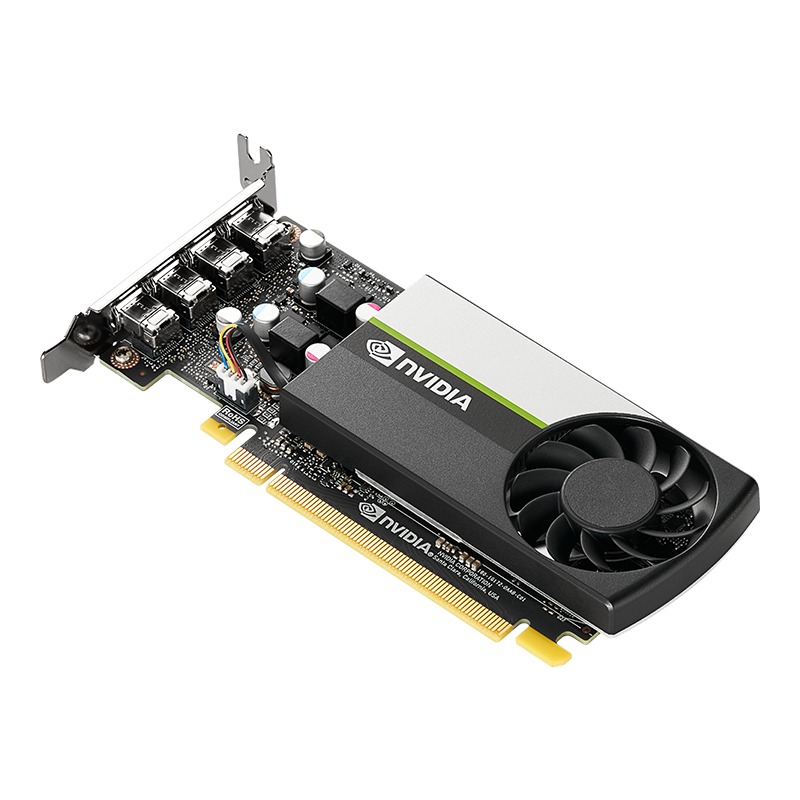

The NVIDIA T1000 is a low-profile, professional-grade video card. It has mid-range 3D performance, and specializes in multi-display situations thanks to four separate outputs. That means you can drive up to four displays by using only one card slot and driver, or stack multiple T1000 cards in a system to expand that to eight or even more outputs. It is perfect for stock/day traders or any other professional users who need multiple monitor support without high-end 3D graphics performance.
As described above, this card has four Mini DisplayPort connections - and one adapter to full size DisplayPort is included as well. Additional adapters can be purchased separately, and adapters to HDMI are also available but may impact the maximum per-screen resolution.
As described above, this card has four Mini DisplayPort connections - and one adapter to full size DisplayPort is included as well. Additional adapters can be purchased separately, and adapters to HDMI are also available but may impact the maximum per-screen resolution.
Model: NVIDIA VCNT1000-PB
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Quadro |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | Not Available |
| TGP | 50 W |
GPU Specifications | |
| Stream Processors | 896 |
Memory Specifications | |
| Video Memory | 4GB |
| Memory Type | GDDR6 |
| Memory Bus Width | 128-bit |
| Bandwidth | 160 GB/s |
Performance | |
| Single Precision Floating Point (Peak) | 2.50 Tflops |
Additional Information | |
| Cooling System | Small Fan and Heatsink |
| Slot Width | 1 |
| Quadro Sync Support | No |
Outputs | |
| Port 1 | Mini DisplayPort |
| Port 2 | Mini DisplayPort |
| Port 3 | Mini DisplayPort |
| Port 4 | Mini DisplayPort |
Power Connectors | |
| Plug 1 | None |
Dimensions | |
| Net Weight | 0.432 kg (1.0 lbs) |
