NVIDIA GeForce RTX 4070 SUPER 12GB Ports
HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 1.4a Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
NVIDIA's GeForce RTX 4070 SUPER is a mid-range consumer graphics card in their GeForce RTX 40-series, which is based on the Ada Lovelace architecture. This generation brings substantial increases to overall performance, but without a corresponding increase in power usage - giving it excellent efficiency and resulting in generally cool and quiet operation. It includes less VRAM (12GB) and fewer CUDA cores compared to the more expensive RTX 4080 and 4090, and includes one upgraded video encoder with support for the AV1 codec (versus two on the higher-end models).

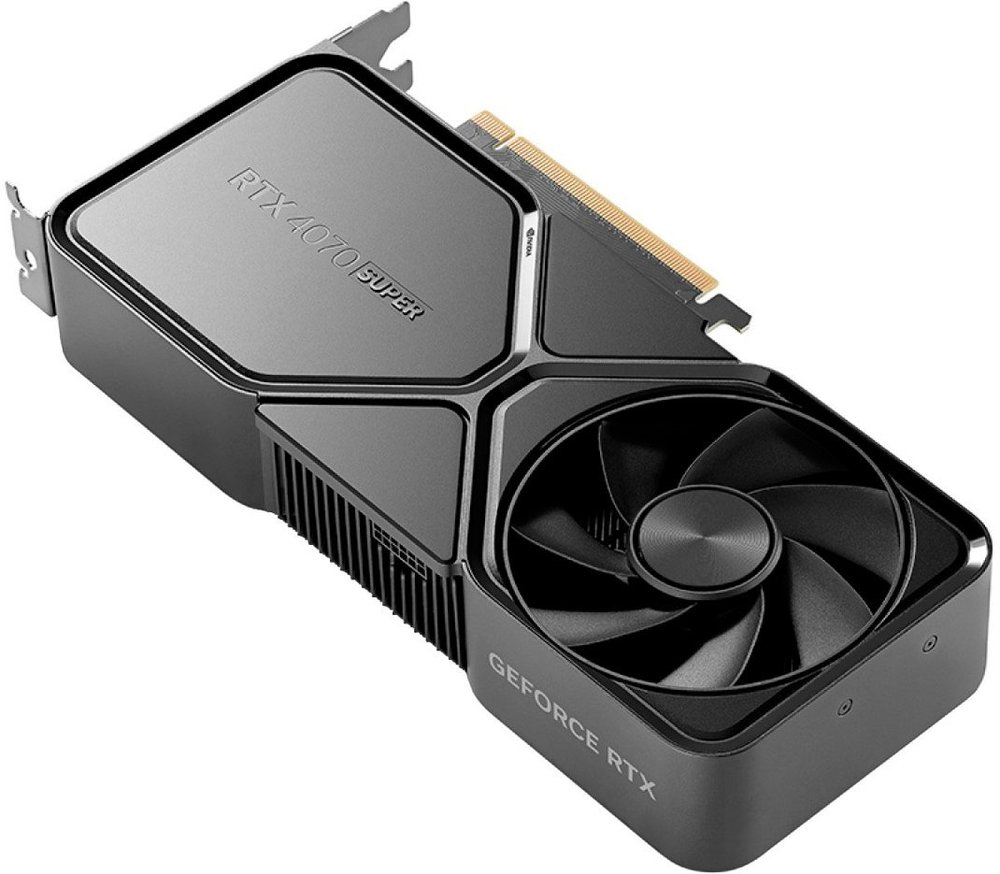

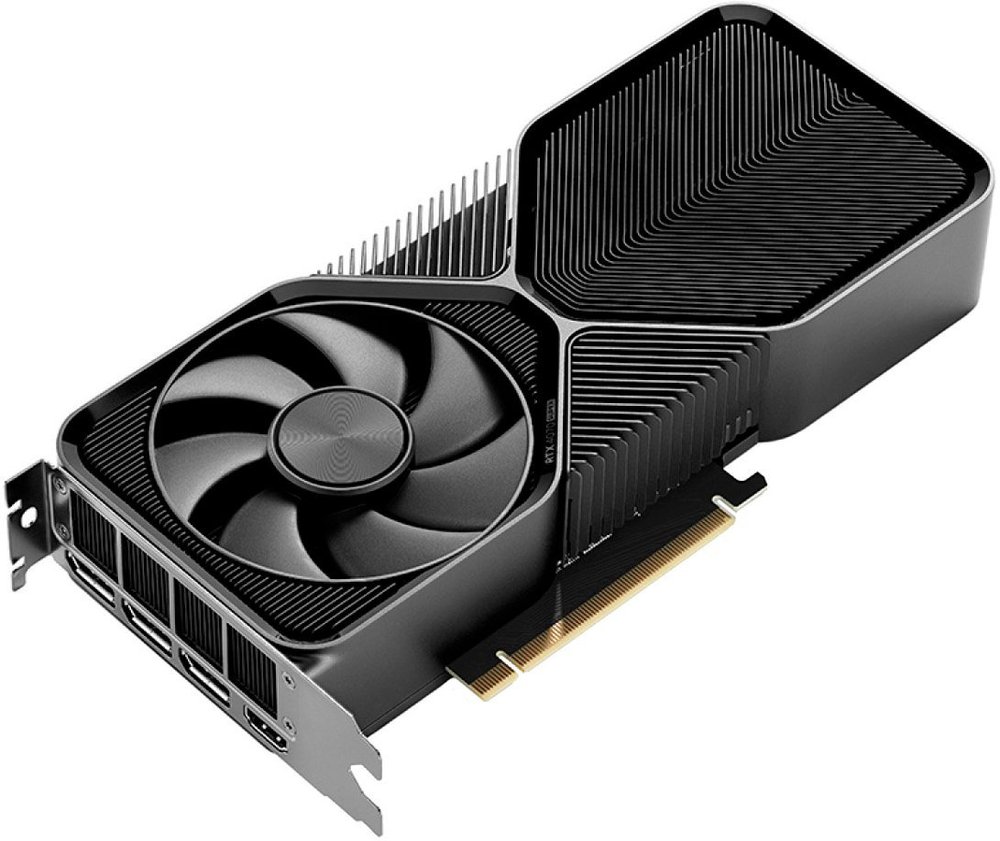

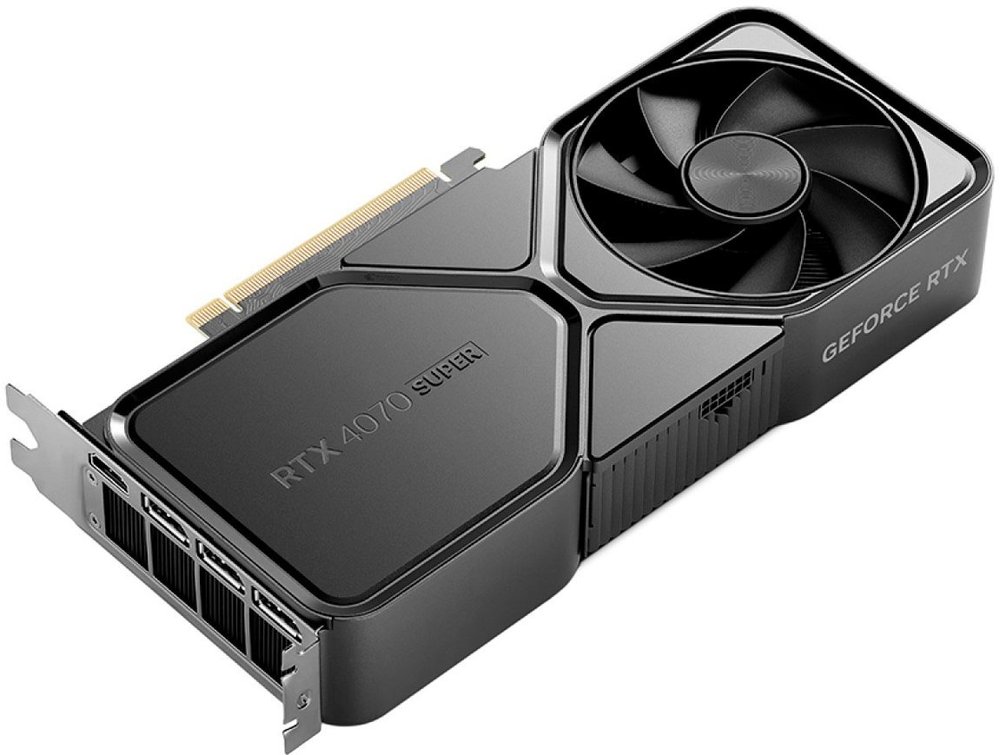

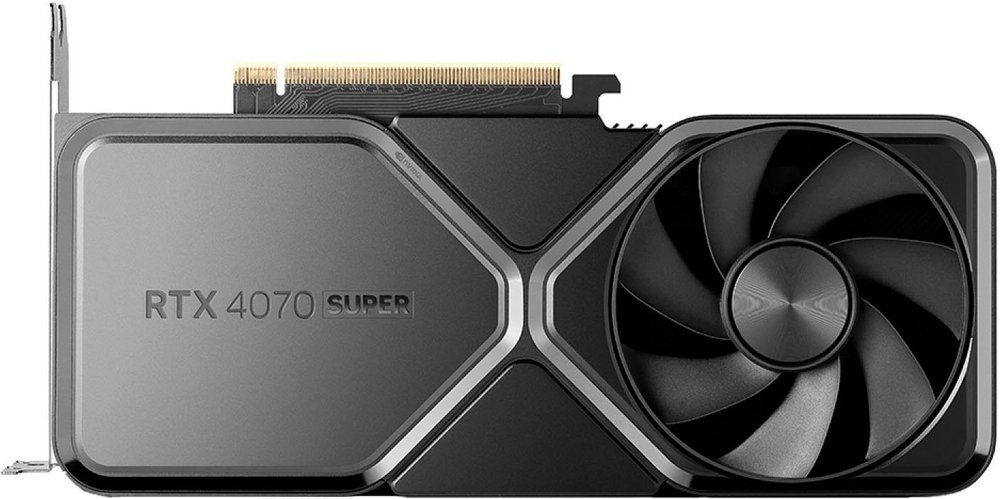

Most versions of the RTX 4070 SUPER use a two- or three-fan cooling layout with a multi-slot heatsink. Some variants are compact enough that they can fit nicely in select small-form-factor systems.
Finally, in regards to connectivity, there are one HDMI 2.1a and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Most versions of the RTX 4070 SUPER use a two- or three-fan cooling layout with a multi-slot heatsink. Some variants are compact enough that they can fit nicely in select small-form-factor systems.
Finally, in regards to connectivity, there are one HDMI 2.1a and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | GeForce |
| Series | RTX 4000 |
| Model | 4070 SUPER |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 4.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum HDMI Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | Not Available |
| TGP | 220 W |
GPU Specifications | |
| Core Speed | 1,980 MHz |
| Boost Speed | 2,480 Mhz |
| Stream Processors | 7,168 |
Memory Specifications | |
| Video Memory | 12GB |
| Memory Type | GDDR6X |
| Memory Speed | 21,000 MHz |
| Memory Bus Width | 192-bit |
Additional Information | |
| Cooling System | Quiet Fan and Heatsink |
| DirectX Support | DirectX 12 |
| CUDA Support | 11 |
| OpenGL Support | 4.5 |
| Removable Backplate | No |
| Slot Width | 2 |
Outputs | |
| Port 1 | HDMI 2.1 |
| Port 2 | DisplayPort 1.4a |
| Port 3 | DisplayPort 1.4a |
| Port 4 | DisplayPort 1.4a |
Power Connectors | |
| Plug 1 | 16-Pin PCIe 5.0 |
Dimensions | |
| Length | 224 mm (8.8 in) |
| Height | 112 mm (4.4 in) |
| Width | 42 mm (1.7 in) |
| Net Weight | 1.025 kg (2.3 lbs) |
