Background on AMD Ryzen 9000 Series CPUs
AMD's Ryzen family of desktop processors has been a solid mainstream workstation CPU line for many years now. The Ryzen 9000 Series continues to improve upon AMD's chiplet design with the new "Zen 5" architecture built on a 4nm manufacturing process. This iteration is mostly focused on increasing efficiency, by reducing power usage, with only modest performance gains over the previous Ryzen 7000 Series. Of course, all of AMD's core features including Turbo Core, SMT, support for DDR5 memory, AVX-512, and PCI Express 5.0 are still present. Together, these efficiency improvements and features create a great foundation for workstation PCs.
For details about how AMD Ryzen CPUs perform in different applications, check out our many processor (CPU) articles.

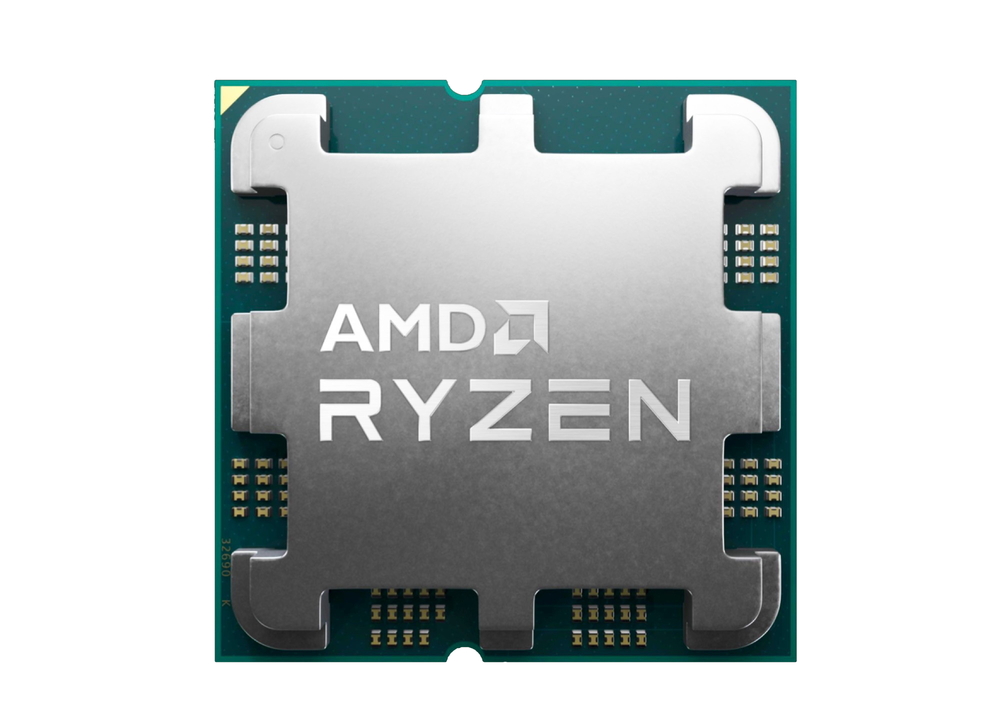

Model: AMD 100-000000662
Specifications
| Product Line | Ryzen |
| Code Name | Granite Ridge AM5 |
| Socket | AM5 |
| Process | 4 nm |
| Total Number of Threads | 24 |
| Total Number of Cores | 12 |
| Base Clock Speed | 4.4 GHz |
| Simultaneous Multi-Threading | Yes |
| Turbo Boost | Yes |
| Max. Turbo Boost | 5.6 GHz |
| Thermal Output | 120 W |
| Max Temperature | 95 C |
Cache | |
| L2 | 12MB |
| L3 | 64MB |
Onboard Graphics | |
| Processor Type | AMD Radeon Graphics |
| Core Speed | 2,200 MHz |
| Cores on Die | 2 |
Memory Specification | |
| Memory Type | DDR5 |
| Maximum Frequency | 5600 |
| ECC Support | Yes |
| Registered Support | No |
Max Memory Speed
- 2x1R DDR5-5600
- 2x2R DDR5-5600
- 4x1R DDR5-3600
- 4x2R DDR5-3600
