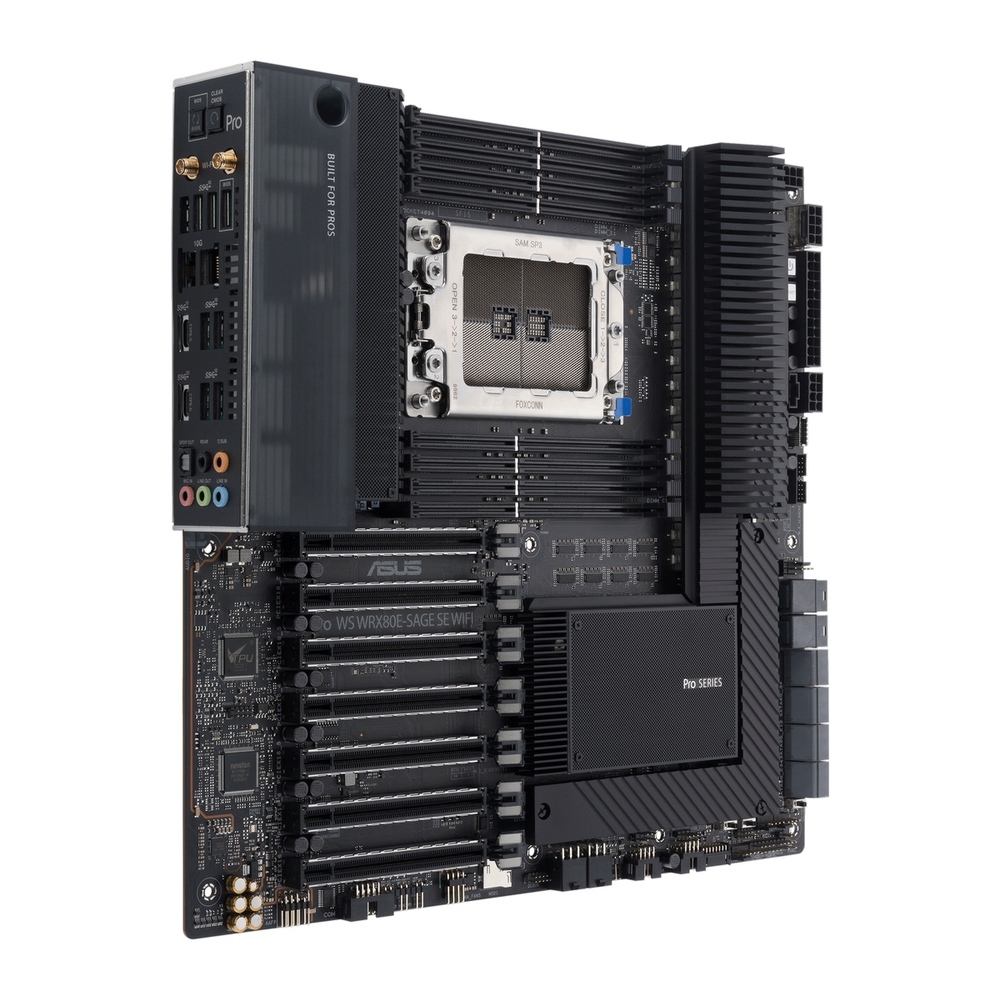

Asus Pro WS WRX80E-SAGE SE WIFI Ports

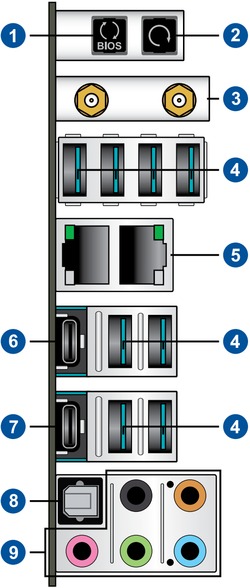

USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
10G LAN Ports (RJ-45): RJ-45 plugs for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
USB 3.2 Gen 2x2 Type C: Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 Type C devices (20 Gb/s).
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

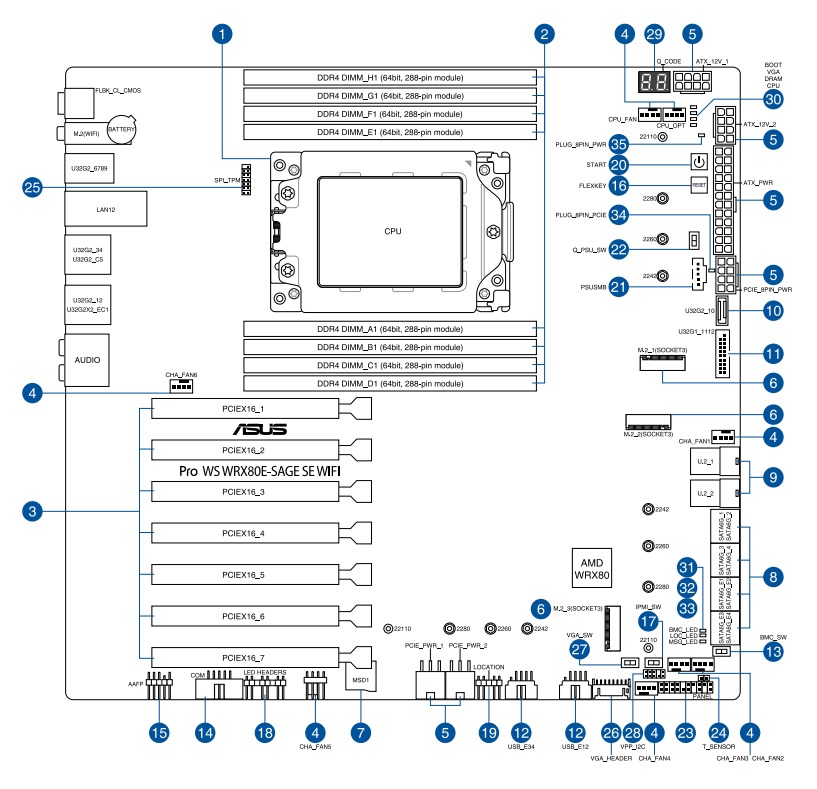

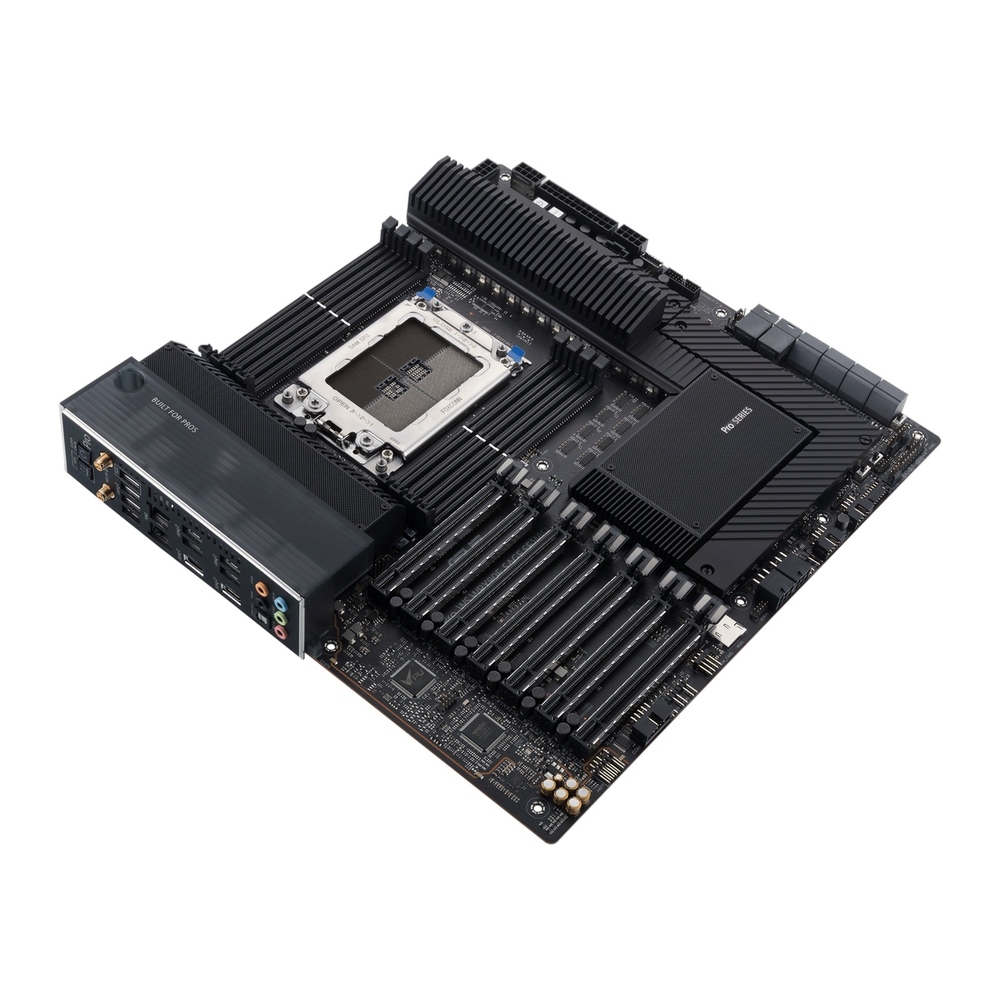

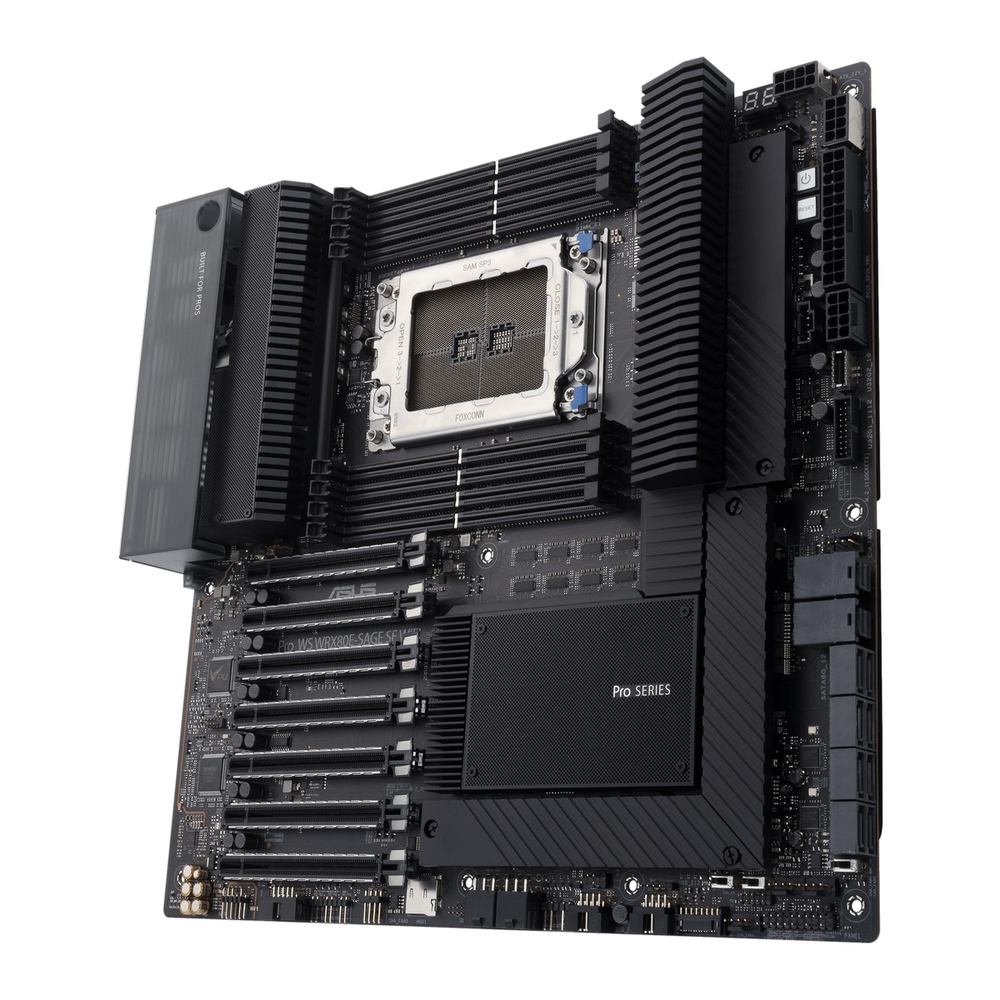

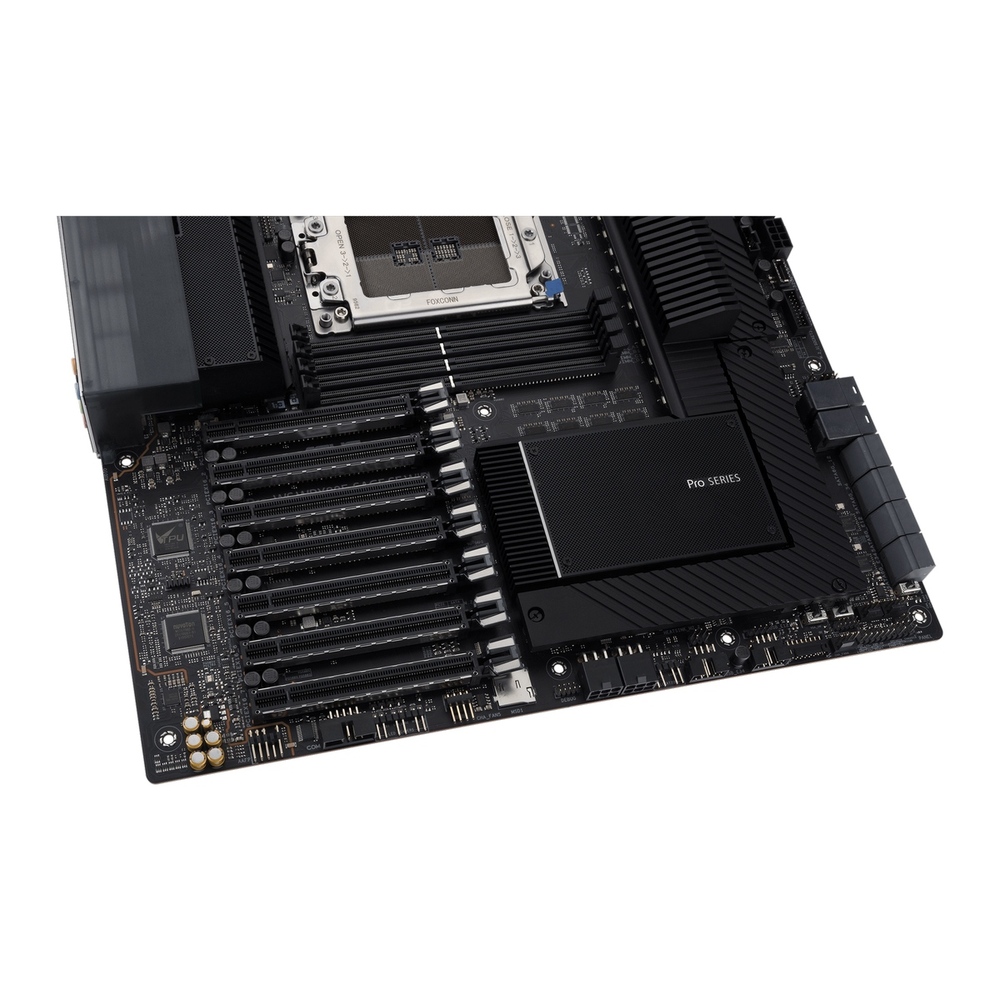

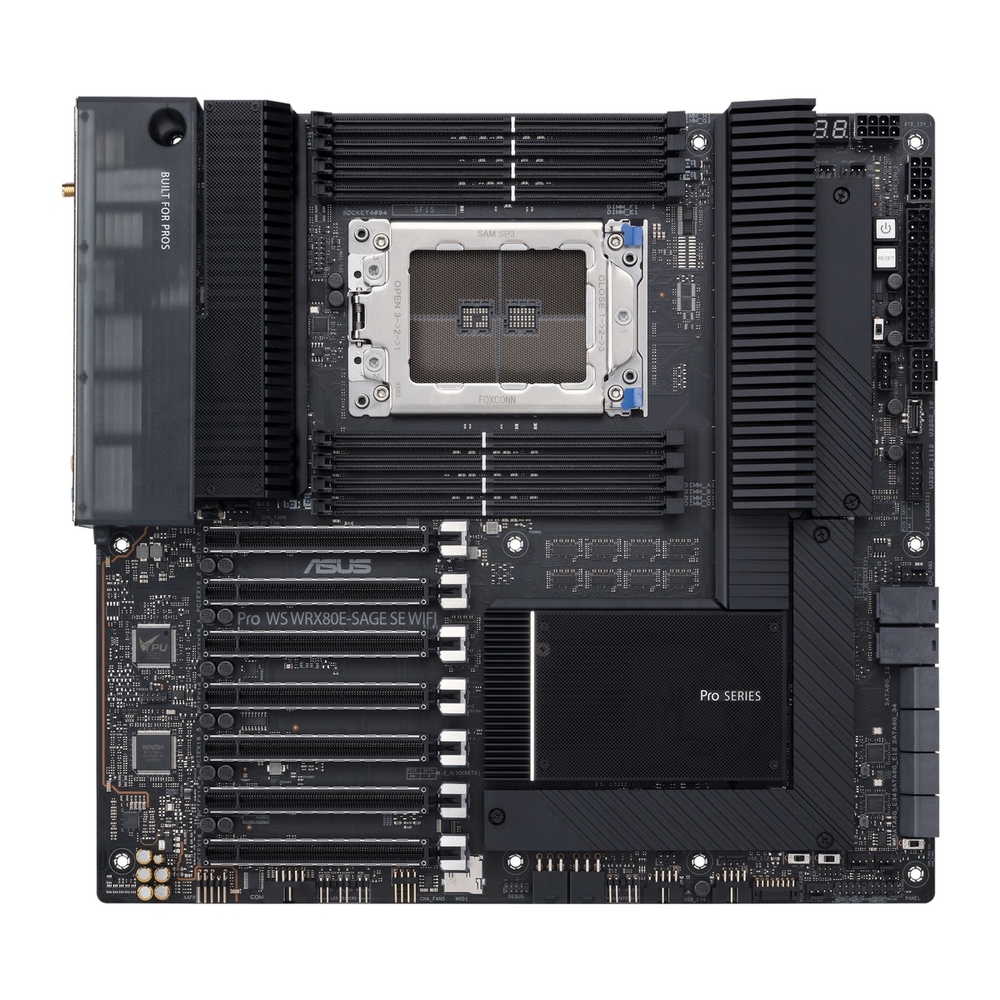

Asus Pro WS WRX80E-SAGE SE WIFI Schematic
A wide range of connectivity is provided as well: eight standard USB ports, two of the new USB Type C, dual 10Gb Ethernet, WiFi 6, Bluetooth 5.0, and both analog and digital audio. Internally it has eight SATA ports and three M.2 connectors, supporting a flexible array of storage options.
We source this board from distribution, not retail, so it does not include the quad M.2 adapter card which Asus sometimes includes in the retail box.
Model: Asus 90MB1591-M0ACN0
Specifications
| Socket | sWRX8 |
| CPU Compatibility | Threadripper Pro |
| Form Factor | SSI EEB |
| Chipset Manufacturer | AMD |
| Chipset | WRX80 |
| Network Connectivity | Dual 10G Networking + WiFi 6 |
| Network Controller | Intel X550-AT2, Intel AX200 |
| Audio Controller | Onboard Realtek ALC4080 HD Audio |
| Cooling System | Heatsink and Fan |
| Number of Fans | 2 |
| Color | Black |
Memory Support | |
| Type | DDR4 ECC Registered |
| Maximum Speed | 3200 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 2048 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2500 |
| Maximum Resolution | 1920x1200 |
| VGA | 1 |
| Notes: | VGA output via included expansion bracket |
External Connections | |
| USB 3.2 Gen 2 (USB 3.1) | 8 |
| USB 3.2 Type C | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| PS/2 Keyboard | No |
| PS/2 Mouse | No |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| Mgmt LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 8 |
| M.2 Connector | 3 |
| M.2 Support | 42-110mm NVMe (Gen4) & SATA |
| U.2 Connector | 2 |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | AMD WRX80 |
| SATA III 6.0Gbps Controller 2 | Asmedia |
Expansion Slots | |
| Slot 1 | PCI Express 4.0 x16 |
| Slot 2 | PCI Express 4.0 x16 |
| Slot 3 | PCI Express 4.0 x16 |
| Slot 4 | PCI Express 4.0 x16 |
| Slot 5 | PCI Express 4.0 x16 |
| Slot 6 | PCI Express 4.0 x16 |
| Slot 7 | PCI Express 4.0 x16 |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0, 1, 10 |
| Bluetooth | Yes (5.0) |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 310 mm (12.2 in) |
| Width | 330 mm (13.0 in) |
| Net Weight | 2.5 kg (5.5 lbs) |
