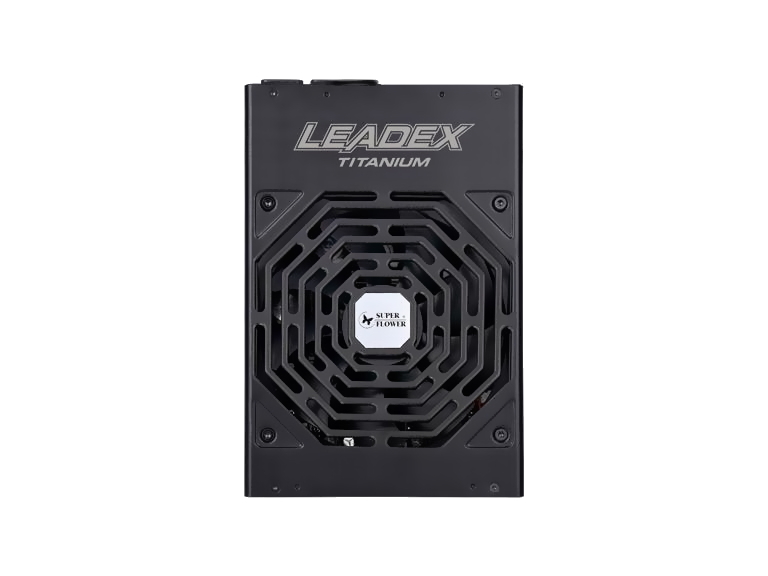

The Super Flower LEADEX Titanium ATX 3.0 1600W is a massive, 80 PLUS Titanium-certified power supply unit with completely modular wiring for clean assembly and a 140mm cooling fan. That fan turns off entirely when the system is using little power, but when the fan does come on this particular model is a bit noisier than the lower-wattage modes in this series.
This particular unit has been updated to support PCIe 5.0 standards and includes two 16-pin connectors for powering the latest graphics cards.
This particular unit has been updated to support PCIe 5.0 standards and includes two 16-pin connectors for powering the latest graphics cards.

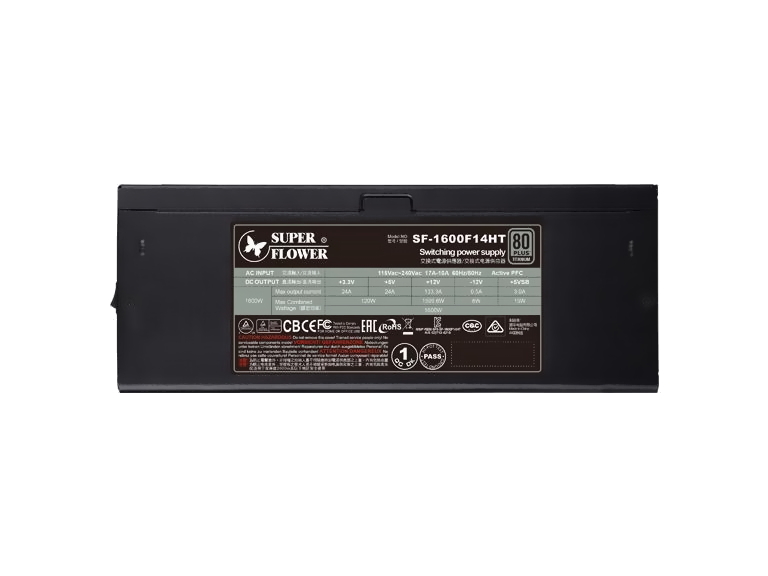

Model: Super Flower SF-1600F14HT ATX 3.0
Specifications
| Maximum Power | 1600 W |
| Standard Compliance | ATX |
| Peak Efficiency | 94 % |
| Efficiency Certification | 80 PLUS Titanium |
| Cooling System | 140mm Fan |
| Noise Level | 0 - 38 dB |
| Safety Compliance | OVP, UVP, OPP, SCP, OCP, OTP |
| Industry Compliance | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Form Factor | PS/2 |
Power Distribution | |
| +3.3V rail | 24 amps |
| +5V rail | 24 amps |
| +12V1 rail | 133 amps |

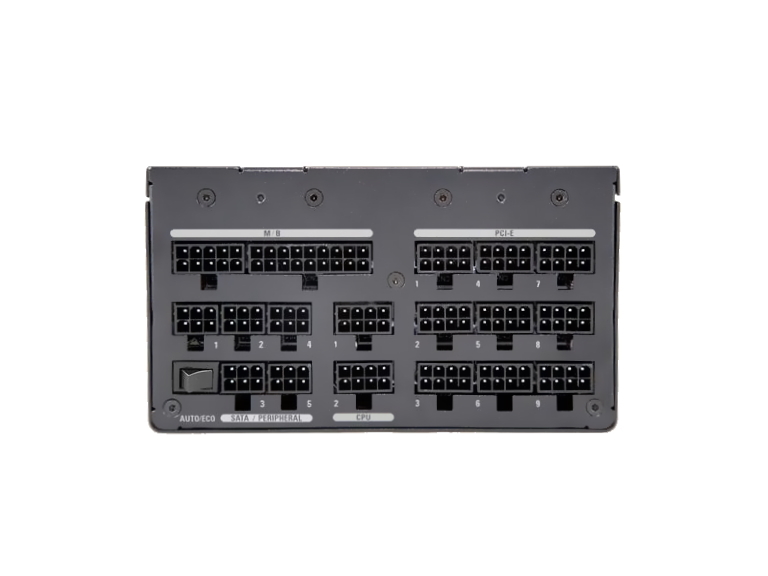

Connectors | |
| Molex | 5 |
| SATA | 14 |
| Floppy | 2 |
| PCIe 6-Pin | 5 |
| PCIe 8-Pin | 9 |
| PCIe 5.0 16-Pin | 2 |
| CPU Power 8/4 pin | 2 |
| External Connector Type | C19 |
Dimensions | |
| Height | 85 mm (3.3 in) |
| Width | 150 mm (5.9 in) |
| Depth | 220 mm (8.7 in) |
| Net Weight | 5.90 kg (13.0 lbs) |
Input | |
| Voltage | 115 - 240 Vac |
| Frequency | 50 - 60 Hz |
