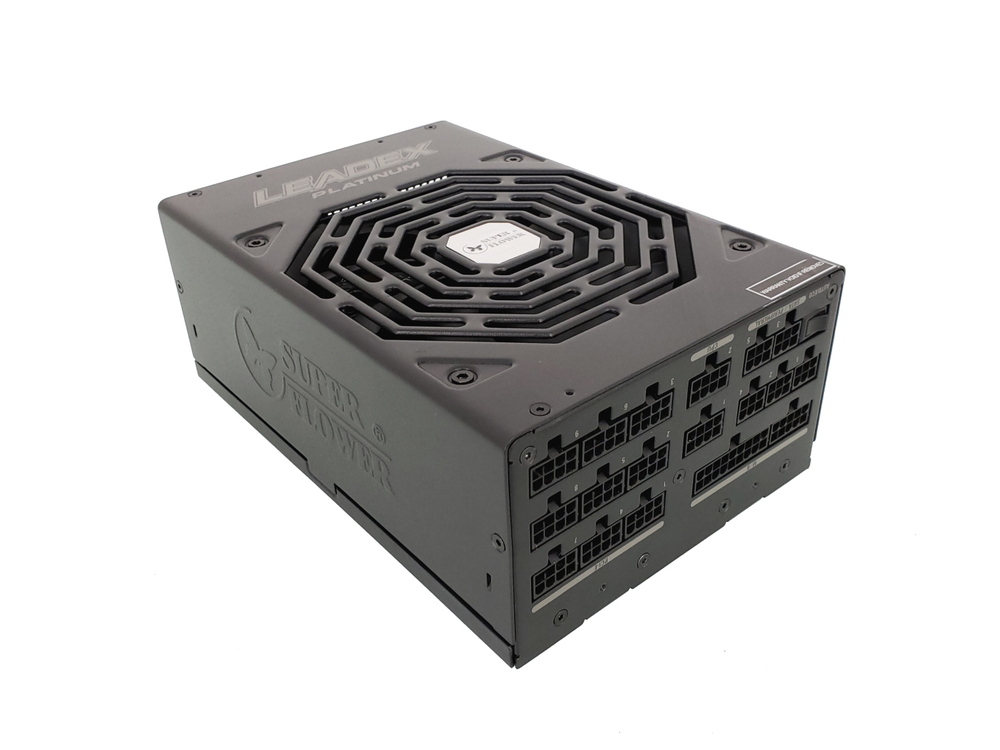

The Super Flower LEADEX Platinum 1600W is a massive, 80 PLUS Platinum-certified power supply unit with completely modular wiring for clean assembly and a 140mm cooling fan. That fan turns off entirely when the system is using little power, but when the fan does come on this particular model is a bit noisier than the lower-wattage versions in this series.
Model: Super Flower SF-1600F14HP
Specifications
| Maximum Power | 1600 W |
| Standard Compliance | cTUVus, TUV, CB, CE, FCC, EAC, CQC |
| Peak Efficiency | 92 % |
| Efficiency Certification | 80 PLUS Platinum |
| Cooling System | 140mm Fan |
| Safety Compliance | cTUVus, TUV, CB, CE, FCC, EAC, RoHS, CQC |
| Materials Compliance | RoHS |
Power Distribution | |
| +3.3V rail | 20 amps |
| +5V rail | 20 amps |
| +12V1 rail | 133.3 amps |
| Combined +12V Maximum | 133.3 amps |

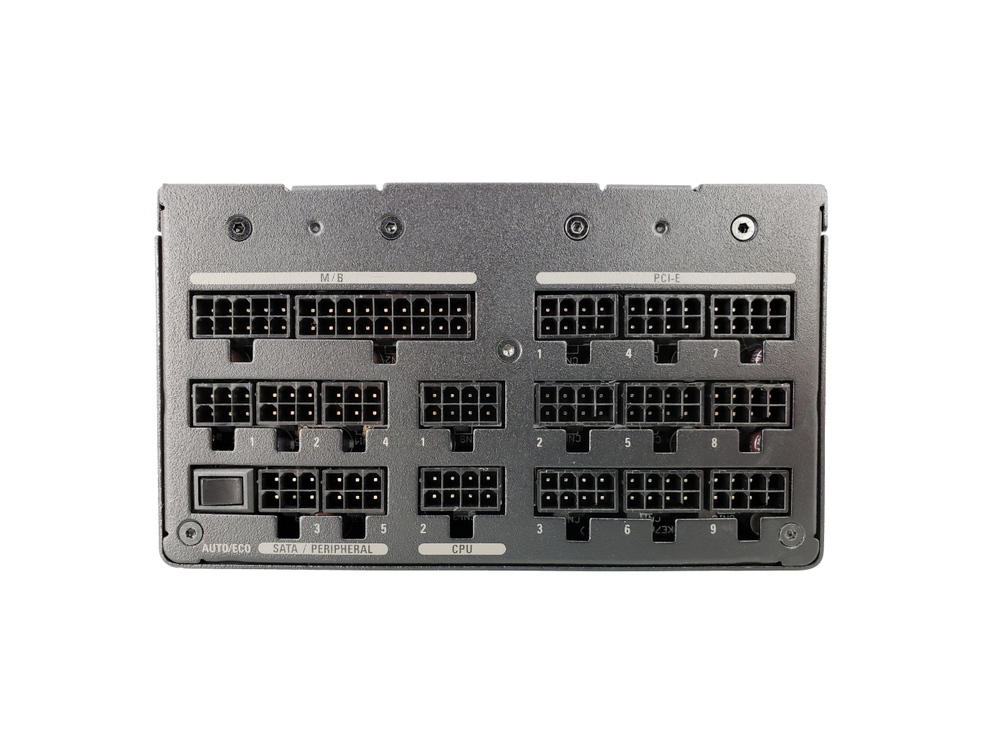

Connectors | |
| Molex | 5 |
| SATA | 14 |
| Floppy | 1 |
| PCIe 6-Pin | 5 |
| PCIe 8-Pin | 9 |
| CPU Power 8/4 pin | 2 |
| External Connector Type | C19 |
Dimensions | |
| Height | 86 mm (3.4 in) |
| Width | 150 mm (5.9 in) |
| Depth | 220 mm (8.7 in) |
| Net Weight | 4.873 kg (10.7 lbs) |
Input | |
| Voltage | 100-240 Vac |
| Frequency | 50/60 Hz |
Features
- ECO mode keeps the fan off when unneeded, and is only ran at the lowest speed needed to keep the internals cool.
- Fully modular cables
- Protections: OVP / OCP / OPP / SCP / OTP / UVP / SVP
