NVIDIA's GeForce RTX 4070 Ti is the third consumer graphics card in their GeForce RTX 40-series, which is based on the Ada Lovelace architecture. This generation brings substantial increases to overall performance, but without a corresponding increase in power usage - giving it excellent efficiency and resulting in generally cool and quiet operation. It includes less VRAM (12GB) and fewer CUDA cores compared to the more expensive RTX 4080 and 4090, but still has the same pair of upgraded video encoders with support for the AV1 codec. For more detailed performance info, check out our RTX 4070 Ti Content Creation Review.

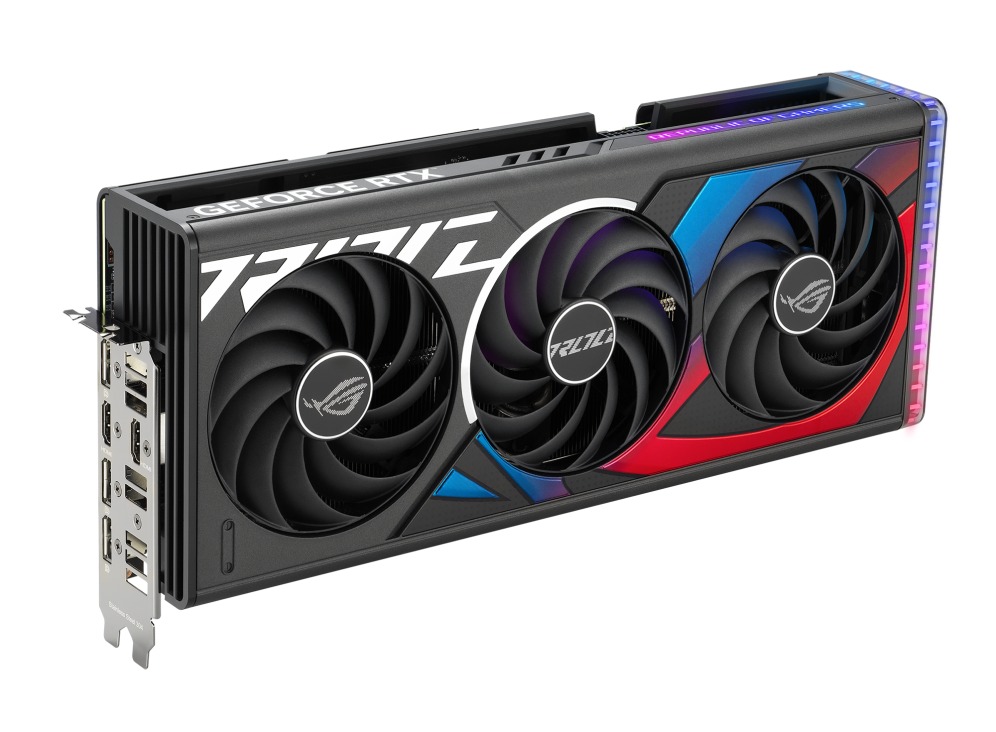

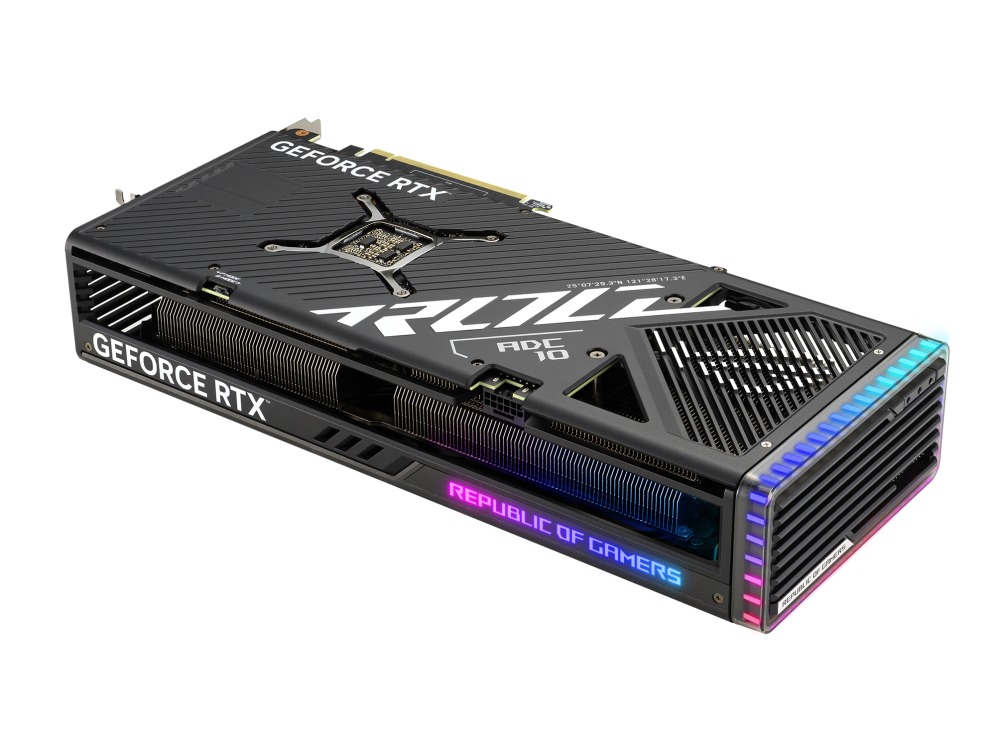

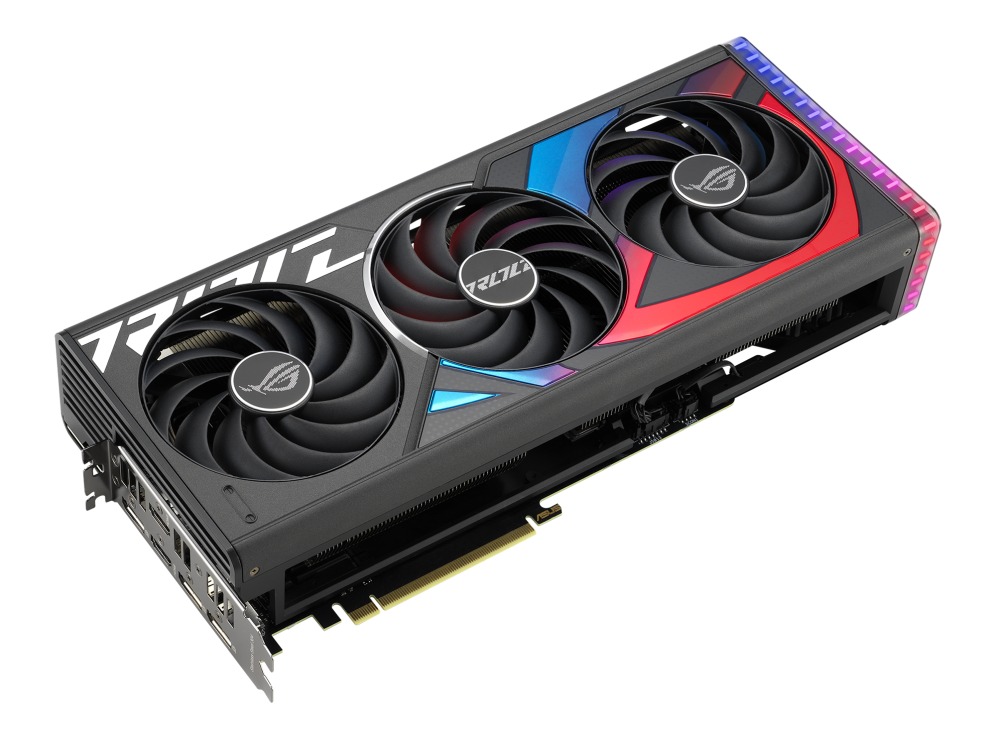

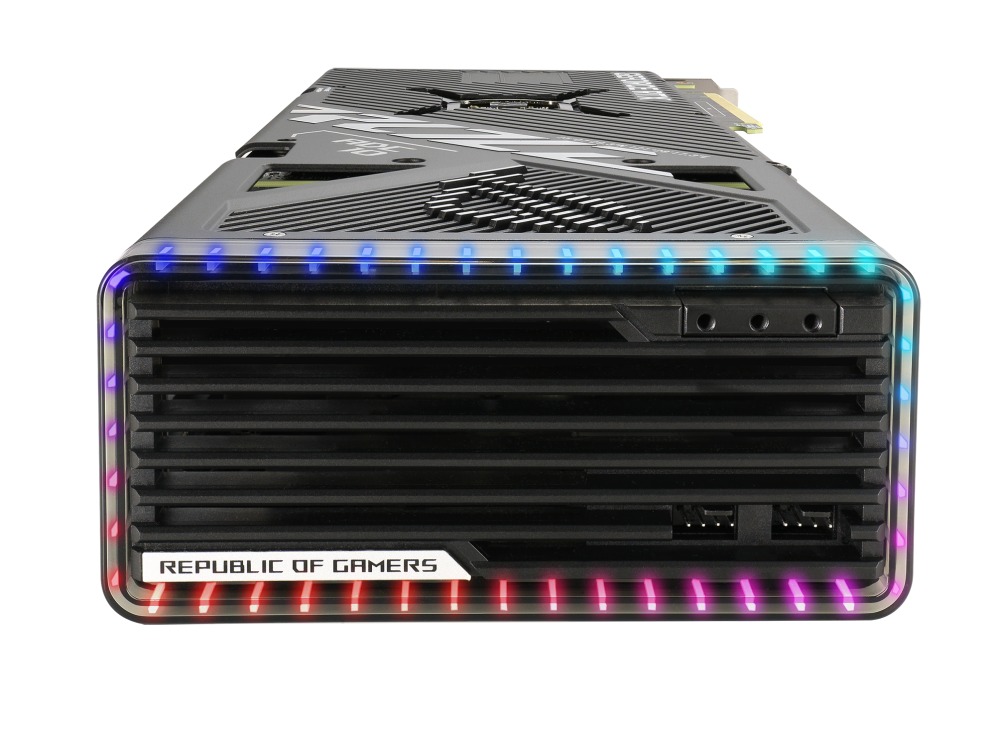

This particular version of the RTX 4070 Ti, from Asus, uses a multi-fan cooling layout with a large, multi-slot heatsink. That is a great approach for keeping these cards cool and quiet, but it is frankly overkill considering how little power they use. Unfortunately that physical size also means most cases, even mid-towers, will only be able to accommodate one of them - but some larger towers may be able to handle two.
Finally, in regards to connectivity, there are two HDMI 2.1a and three DisplayPort 1.4a plugs supporting a total of up to four displays at a time with a maximum resolution of 7680x4320 (8K).
This particular version of the RTX 4070 Ti, from Asus, uses a multi-fan cooling layout with a large, multi-slot heatsink. That is a great approach for keeping these cards cool and quiet, but it is frankly overkill considering how little power they use. Unfortunately that physical size also means most cases, even mid-towers, will only be able to accommodate one of them - but some larger towers may be able to handle two.
Finally, in regards to connectivity, there are two HDMI 2.1a and three DisplayPort 1.4a plugs supporting a total of up to four displays at a time with a maximum resolution of 7680x4320 (8K).
Model: Asus STRIX-RTX4070TI-O12G-GAM
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | GeForce |
Series | RTX 4000 |
Model | 4070 Ti |
Motherboard Connection | PCI Express x16 |
Interface | PCI Express 4.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum HDMI Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | Not Available |
TGP | 285 W |
GPU Specifications | |
Core Speed | 2,310 MHz |
Boost Speed | 2,760 Mhz |
Stream Processors | 7,680 |
Memory Specifications | |
Video Memory | 12GB |
Memory Type | GDDR6X |
Memory Speed | 21,000 MHz |
Memory Bus Width | 192-bit |
Additional Information | |
Cooling System | Quiet Fan and Heatsink |
DirectX Support | DirectX 12 |
CUDA Support | 11 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 3+ |
Outputs | |
Port 1 | DisplayPort 1.4a |
Port 2 | DisplayPort 1.4a |
Port 3 | DisplayPort 1.4a |
Port 4 | HDMI 2.1 |
Port 5 | HDMI 2.1 |
Power Connectors | |
Plug 1 | 16-Pin PCIe 5.0 |
Dimensions | |
Length | 336 mm (13.2 in) |
Height | 150 mm (5.9 in) |
Width | 63 mm (2.5 in) |
Net Weight | 1.349 kg (3.0 lbs) |
