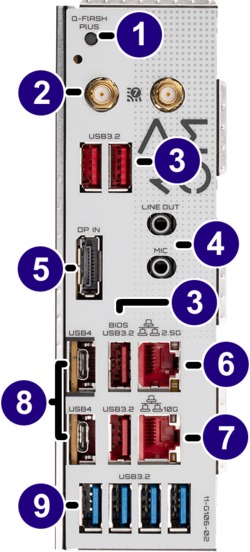

Gigabyte TRX50 AERO D Ports
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
Displayport Input for USB C: Connect a DisplayPort cable from your video card to passthrough to the USB-C / TB port.
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
USB 4.0 Port(s): USB 4.0 is capable of transfer speeds of up to 40 Gbps and optionally supports video out.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).

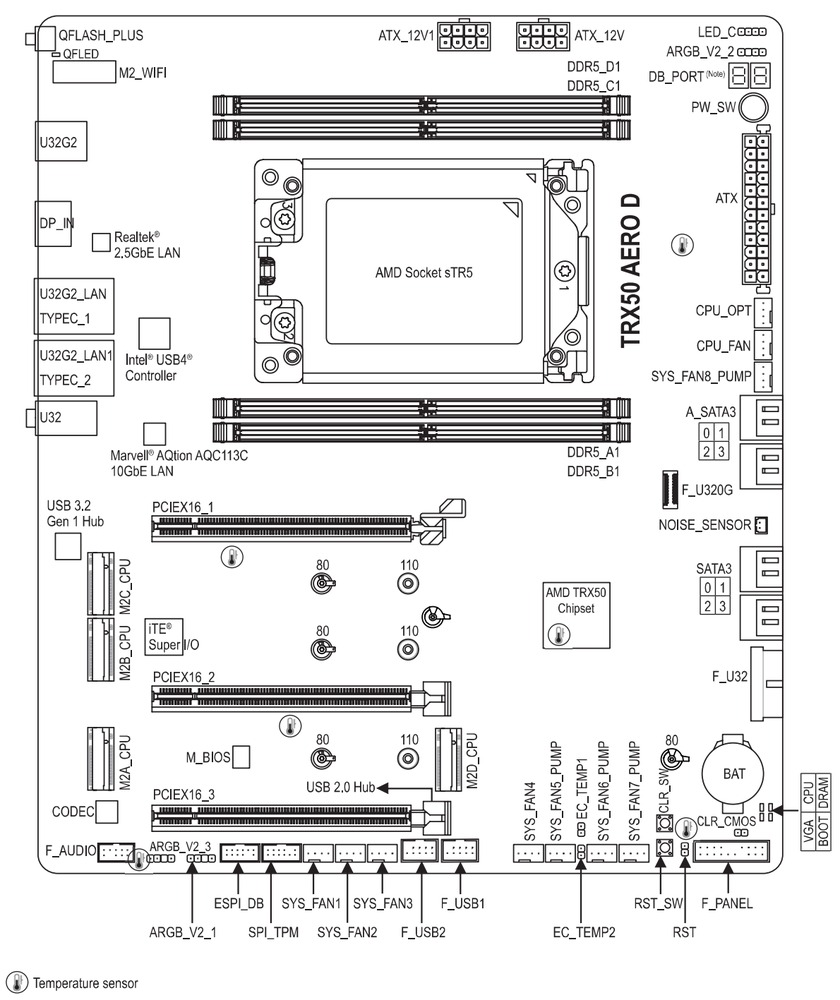

Gigabyte TRX50 AERO D Schematic
A wide range of connectivity is provided as well: two USB 4.0 Type C ports, eight USB 3.2 Type A, 10Gb and 2.5Gb Ethernet ports, WiFi 7, Bluetooth 5.3, and stereo analog audio. Internally it has eight SATA ports and four M.2 connectors for a flexible array of storage options.

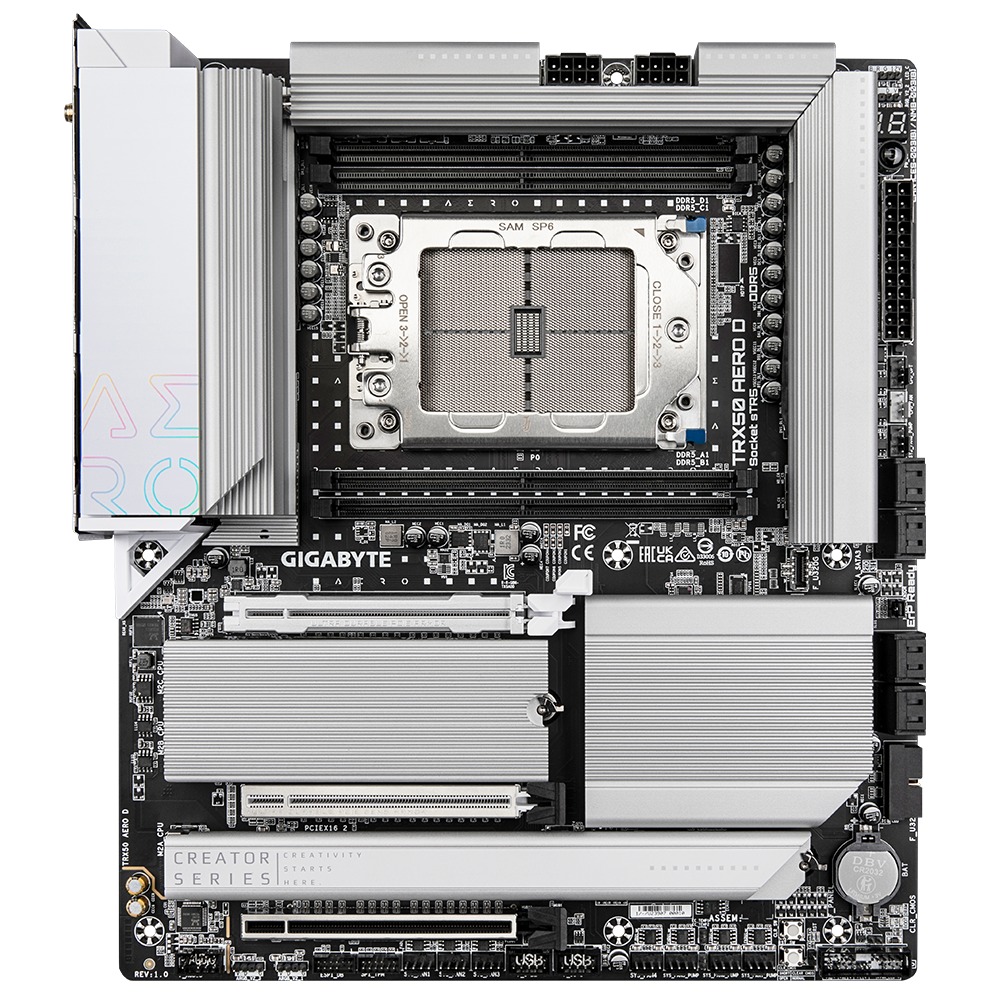

Model: Gigabyte TRX50 AERO D Rev 1.1
Specifications
| Socket | sTR5 |
| CPU Compatibility | Threadripper 7000 |
| Form Factor | CEB |
| Chipset Manufacturer | AMD |
| Chipset | TRX50 |
| Network Connectivity | 10G + 2.5G Networking + WiFi 7 |
| Network Controller | Marvell 10G, Realtek 2.5G, Qualcomm QCNCM865 WiFi 7 |
| Audio Controller | Onboard Realtek ALC4080 HD Audio |
| Cooling System | Passive Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR5 ECC Registered |
| Maximum Speed | 5200 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 256 GB |
| Maximum Amount Supported | 1024 GB |
Onboard Video | |
| USB | 4.0 |
| Notes: | Displayport IN for USB 4 video support |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| USB 3.2 Gen 2 (USB 3.1) | 4 |
| USB 4 | 2 |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| SATA III 6.0Gbps | 8 |
| M.2 Connector | 4 |
| M.2 Support | 1x 80-110mm PCIe 5.0, 2x 80-110mm PCIe 5.0, 1x 80mm PCIe 4.0 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Gigabyte GC-TPM2.0 SPI 2.0 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 4x Via CPU |
| SATA III 6.0Gbps Controller 2 | 4x Via Chipset |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | Slot not available on this board |
| Slot 4 | Slot not available on this board |
| Slot 5 | PCI Express 5.0 x16 |
| Slot 6 | Slot not available on this board |
| Slot 7 | PCI Express 4.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0/1/5/10 |
| Bluetooth | Yes (5.2) |
| Dual GPU Slot Spacing | 3-Slot |
| Integrated IO Shield | Yes |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 264 mm (10.4 in) |
| Depth | 50 mm (2.0 in) |
| Net Weight | 2.132 kg (4.7 lbs) |
