NVIDIA GeForce GTX 1080 Ti 11GB Ports
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
HDMI 2.0b Out Port: Outputs digital video and audio at up to 4K resolution (4096x2160). Also supports HDR.
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).

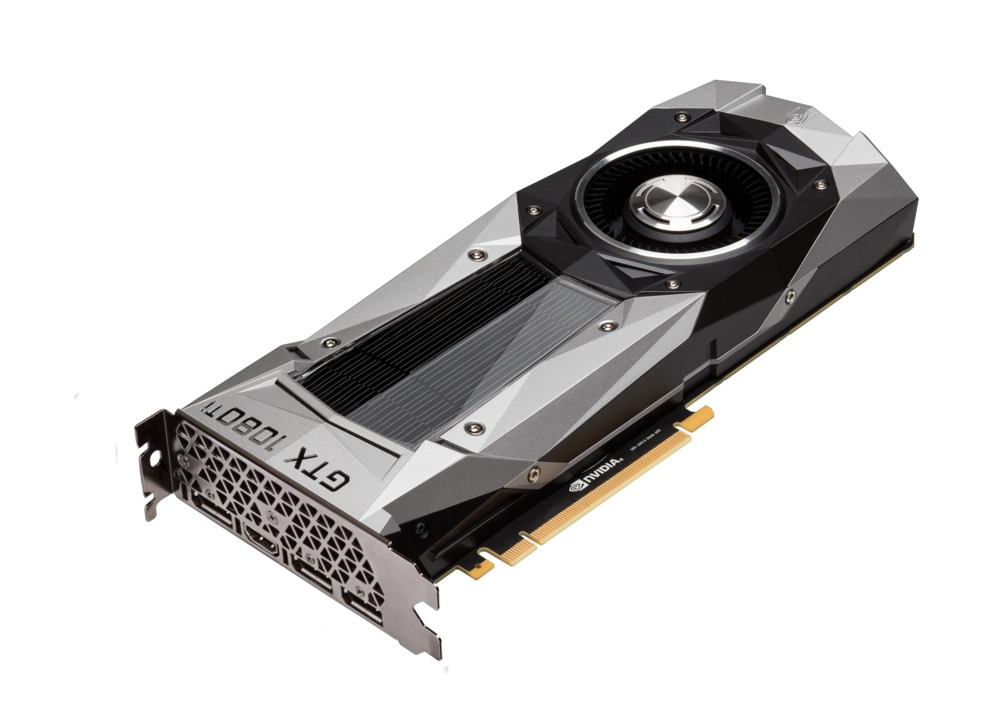

NVIDIA's GeForce GTX 1080 Ti represents a refresh to their new Pascal graphics card line. It improves upon the original GTX 1080 with both more graphics processors (CUDA cores) and additional video RAM. Those combine to provide a substantial boost in performance, with the GTX 1080 Ti about 30% faster than the GTX 1080 - and even a hair faster than the Titan X, though without quite as much onboard memory as that model.
In addition to its great speed and efficiency, the GTX 1080 Ti shares the under-the-hood improvements that all Pascal cards have for boosting virtual reality and multi-monitor performance. It is excellent at maintaining good frame-rates in games and VR experiences, even in graphics-laden titles and at high resolutions, and includes support for CUDA, DX12, and NVIDIA's 3D Vision technology. Finally, it supports up to 4 usable display outputs: one HDMI 2.0 and three DisplayPorts. The older DVI connection has been removed, which allows more room for the card to vent hot air.
In addition to its great speed and efficiency, the GTX 1080 Ti shares the under-the-hood improvements that all Pascal cards have for boosting virtual reality and multi-monitor performance. It is excellent at maintaining good frame-rates in games and VR experiences, even in graphics-laden titles and at high resolutions, and includes support for CUDA, DX12, and NVIDIA's 3D Vision technology. Finally, it supports up to 4 usable display outputs: one HDMI 2.0 and three DisplayPorts. The older DVI connection has been removed, which allows more room for the card to vent hot air.
William George (Marketing Project Manager) Says:
The GTX 1080 Ti is the fastest video card for gaming, as of its launch in March 2017, and it should excel in other GPU accelerated applications as well. It is probably overkill for gaming at anything below 4K 60Hz or 1440P 120Hz, but if you want the best then this is it (until the next generation of GeForce cards come out, at least). It should also do very well in scientific computing with single precision (FP32) calculations.
The GTX 1080 Ti is the fastest video card for gaming, as of its launch in March 2017, and it should excel in other GPU accelerated applications as well. It is probably overkill for gaming at anything below 4K 60Hz or 1440P 120Hz, but if you want the best then this is it (until the next generation of GeForce cards come out, at least). It should also do very well in scientific computing with single precision (FP32) calculations.
Jeff Stubbers (Tier 3 Consulting SME) Says:
It is interesting to note that one difference this card has compared to the other GTX 10xx series cards is that it drops the DVI output. Instead this card has (1) HDMI, & (3) DisplayPort outputs. So please make sure your monitor(s) have compatible inputs.
It is interesting to note that one difference this card has compared to the other GTX 10xx series cards is that it drops the DVI output. Instead this card has (1) HDMI, & (3) DisplayPort outputs. So please make sure your monitor(s) have compatible inputs.
Model: NVIDIA NVIDIA_FE_1080_TI
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | GeForce |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Core Speed | 1480 MHz |
| Boost Speed | 1582 Mhz |
| Stream Processors | 3584 |
Memory Specifications | |
| Video Memory | 11GB |
| Memory Type | GDDR5X |
| Memory Speed | 11000 MHz |
| Memory Bus Width | 352-bit |
| Bandwidth | 484 GB/s |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 12 |
| CUDA Support | 6.1 |
| OpenGL Support | 4.5 |
| Removable Backplate | Yes |
Outputs | |
| Port 1 | DisplayPort |
| Port 2 | DisplayPort |
| Port 3 | HDMI |
| Port 4 | DisplayPort |
Power Connectors | |
| Plug 1 | 6-pin PCI-E |
| Plug 2 | 8-pin PCI-E |
Dimensions | |
| Length | 266.7 mm (10.5 in) |
| Height | 111.2 mm (4.4 in) |
| Width | 38.1 mm (1.5 in) |
