NVIDIA's GeForce RTX 4070 SUPER is a mid-range consumer graphics card in their GeForce RTX 40-series, which is based on the Ada Lovelace architecture. This generation brings substantial increases to overall performance, but without a corresponding increase in power usage - giving it excellent efficiency and resulting in generally cool and quiet operation. It includes less VRAM (12GB) and fewer CUDA cores compared to the more expensive RTX 4080 and 4090, and includes one upgraded video encoder with support for the AV1 codec (versus two on the higher-end models).

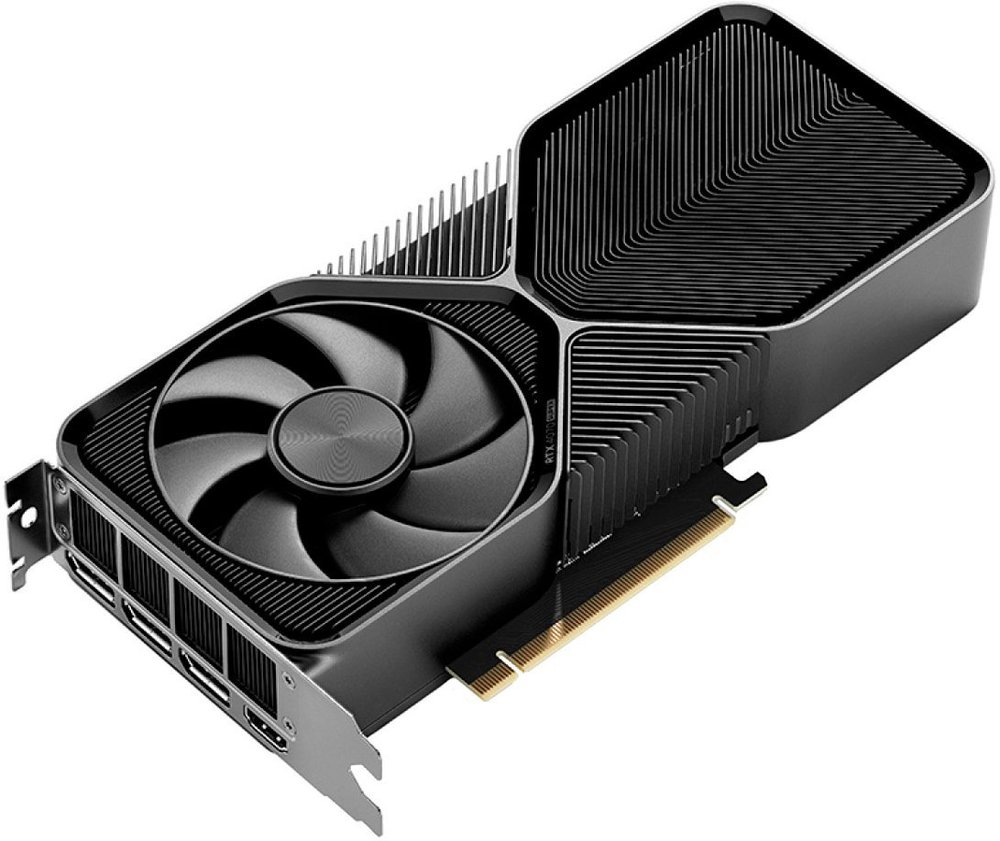

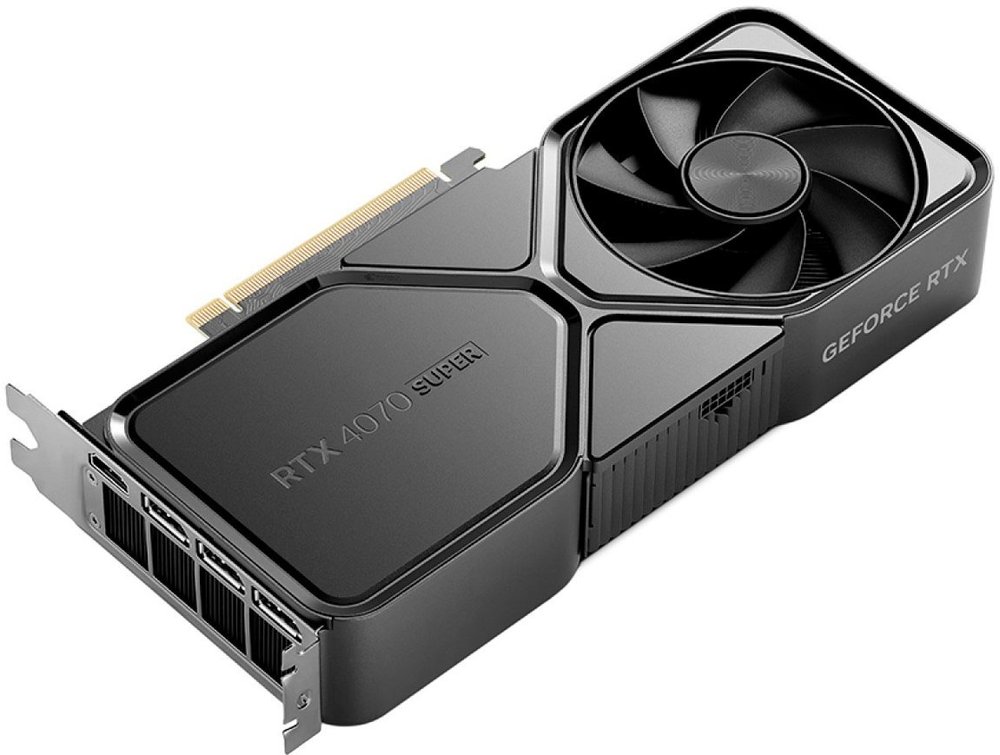

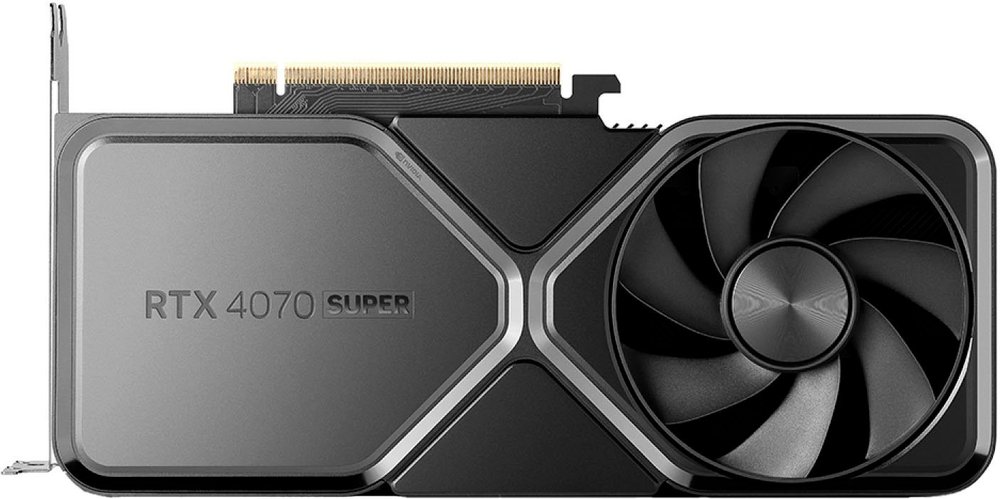

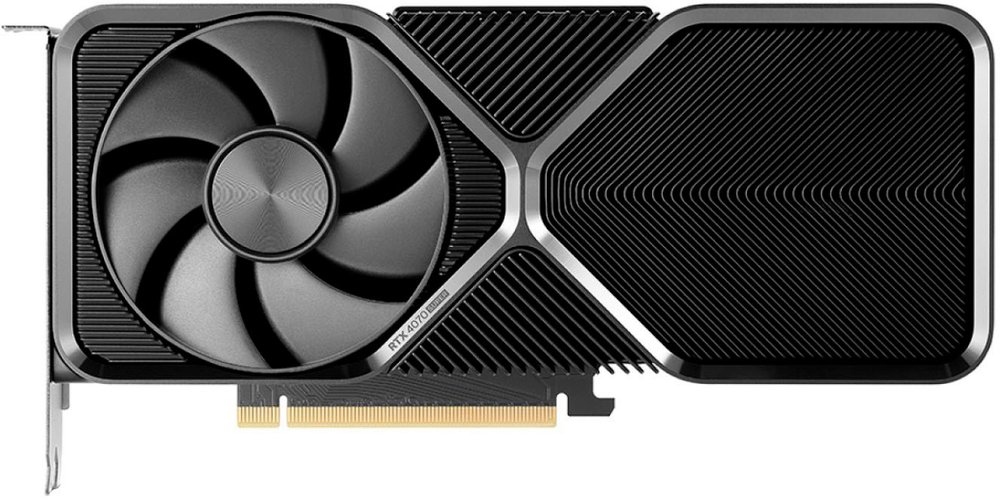

This RTX 4070 SUPER "Founders Edition" variant, directly from NVIDIA, uses a unique dual-fan cooling layout. It is a great design for keeping a single card cool and quiet, by venting some heat out the back of the computer while circulating the rest upward within the case.
Finally, in regards to connectivity, there are one HDMI 2.1a and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
This RTX 4070 SUPER "Founders Edition" variant, directly from NVIDIA, uses a unique dual-fan cooling layout. It is a great design for keeping a single card cool and quiet, by venting some heat out the back of the computer while circulating the rest upward within the case.
Finally, in regards to connectivity, there are one HDMI 2.1a and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Model: NVIDIA 900-1G141-2534-000
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | GeForce |
Series | RTX 4000 |
Model | 4070 SUPER |
Motherboard Connection | PCI Express x16 |
Interface | PCI Express 4.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum HDMI Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | Not Available |
TGP | 220 W |
GPU Specifications | |
Core Speed | 1,980 MHz |
Boost Speed | 2,480 Mhz |
Stream Processors | 7,168 |
Memory Specifications | |
Video Memory | 12GB |
Memory Type | GDDR6X |
Memory Speed | 21,000 MHz |
Memory Bus Width | 192-bit |
Additional Information | |
Cooling System | Quiet Fan and Heatsink |
DirectX Support | DirectX 12 |
CUDA Support | 11 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 2 |
Outputs | |
Port 1 | HDMI 2.1 |
Port 2 | DisplayPort 1.4a |
Port 3 | DisplayPort 1.4a |
Port 4 | DisplayPort 1.4a |
Power Connectors | |
Plug 1 | 16-Pin PCIe 5.0 |
Dimensions | |
Length | 224 mm (8.8 in) |
Height | 112 mm (4.4 in) |
Width | 42 mm (1.7 in) |
Net Weight | 1.025 kg (2.3 lbs) |
